Ford Fiesta: Seating / Rear Seat Cushion. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Seating / Rear Seat Cushion. Removal and Installation

Removal

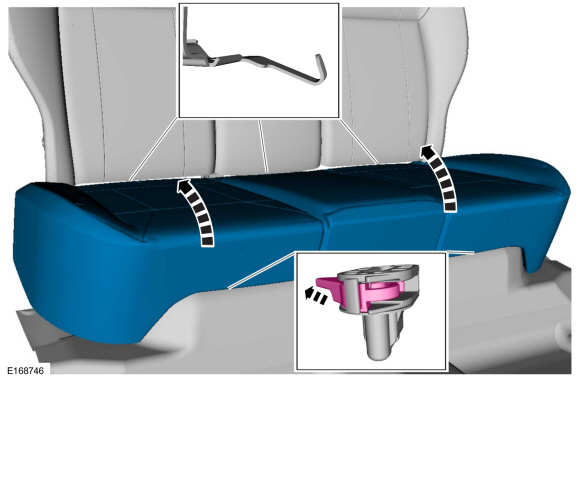

  1. Release the front locking tabs and remove the rear seat cushion.

Installation

  1. NOTE: Before installation, make sure the safety belts and buckles are accessible to the occupants.

    To install, reverse the removal procedure.
