Ford Fiesta: Parking Aid - Vehicles With: Parking Aid Camera / Parking Aid Camera. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Instrumentation and Warning Systems / Parking Aid - Vehicles With: Parking Aid Camera / Parking Aid Camera. Removal and Installation

Removal

Remove the luggage compartment lid moulding.
Refer to: Luggage Compartment Lid Moulding - 4-Door (501-08 Exterior Trim and Ornamentation, Removal and Installation).
Refer to: Luggage Compartment Lid Moulding - 5-Door (501-08 Exterior Trim and Ornamentation, Removal and Installation).

NOTE: 5-door is shown, 4-door is similar.

Remove the parking aid camera.

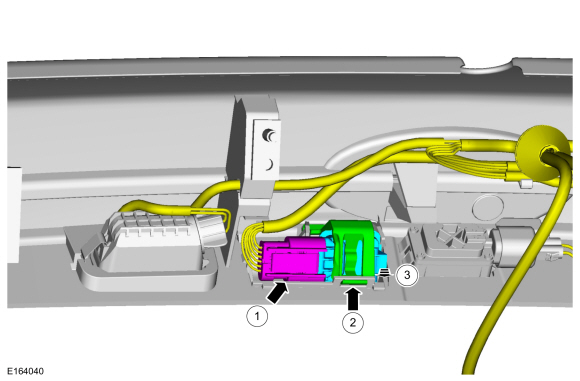

1. Disconnect the parking aid camera electrical connector.
1. Release the tab.
1. Remove the parking aid camera.

Installation

To install, reverse the removal procedure.

NOTE: If the camera was replaced, the rear video camera guidelines will not display if the rear video camera is not configured.
The rear video camera configures when the ignition is turned on.

Parking Aid. Diagnosis and Testing
