Ford Fiesta: Engine - 1.6L EcoBoost (132kW/180PS) – Sigma / Oil Cooler. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Engine / Engine - 1.6L EcoBoost (132kW/180PS) – Sigma / Oil Cooler. Removal and Installation

Special Tool(s) / General Equipment

Strap Wrench
Oil Drain Equipment
Locking Pliers

Materials

Name Specification
Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil
XO-5W20-Q1SP		 WSS-M2C945-B1


Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. With the vehicle in NEUTRAL, position it on a hoist.
    Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

  1. NOTE: Lubricate the engine oil filter gasket with clean engine oil prior to installing the oil filter.

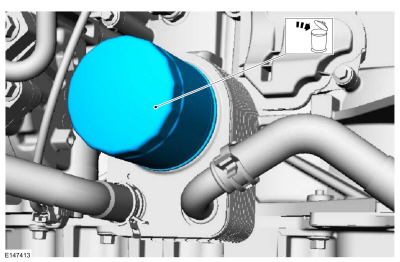

    Remove and discard the engine oil filter.
    Use the General Equipment: Oil Drain Equipment
    Use the General Equipment: Strap Wrench
    Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)
    Torque: 128 lb.in (14.5 Nm)

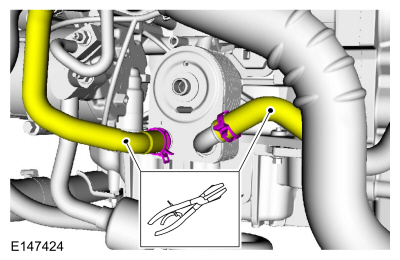

  1. Loosen the hose clamps and disconnect the oil cooler coolant hoses.
    Use the General Equipment: Locking Pliers

  1. NOTICE: If metal or aluminum material is present in the oil cooler, mechanical concerns exist. Failure to correct these concerns may cause engine failure.

    To diagnose mechanical concerns.

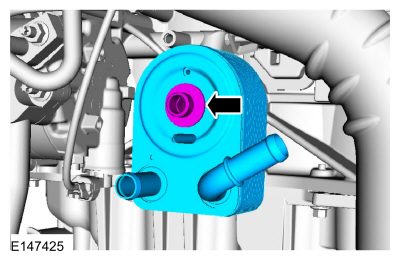

    Remove the bolt and the oil cooler.
    Refer to: Engine (303-00 Engine System - General Information, Diagnosis and Testing).
    Torque: 41 lb.ft (55 Nm)

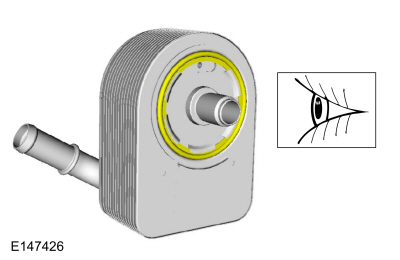

  1. Inspect the oil cooler.

Installation

  1. To install, reverse the removal procedure.
