Ford Fiesta: Handles, Locks, Latches and Entry Systems / Keyless Entry Rear Antenna. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Handles, Locks, Latches and Entry Systems / Keyless Entry Rear Antenna. Removal and Installation

Removal

  1. Remove the rear bumper cover.
    Refer to: Rear Bumper Cover (501-19 Bumpers, Removal and Installation).

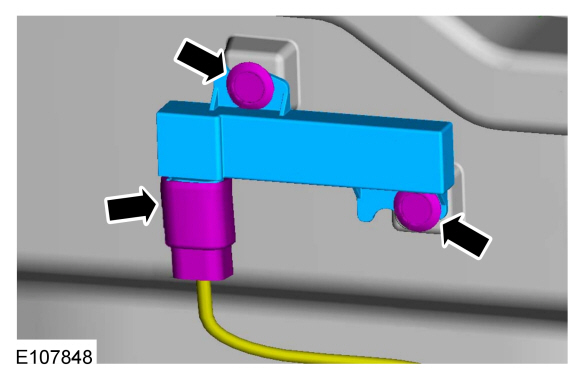

  1. Remove the keyless entry rear antenna.
    • Disconnect the keyless entry rear antenna electrical connector.
    • Remove the retainers.
    • Remove the keyless entry rear antenna.

Installation

  1. To install, reverse the removal procedure.
