Ford Fiesta: Electronic Engine Controls - 1.6L EcoBoost (132kW/180PS) – Sigma / Intake Air Temperature (IAT) Sensor. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

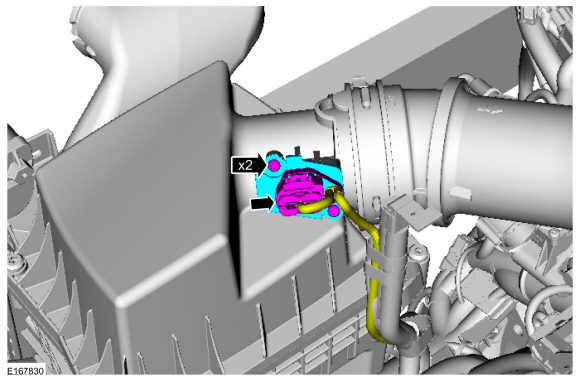

  1. Disconnect the electrical connector, remove the retainers and the IAT sensor.
    Torque: 44 lb.in (5 Nm)

Installation

  1. To install, reverse the removal procedure.
