Ford Fiesta: Engine System - General Information / Exhaust Manifold Cleaning and Inspection. General Procedures
Special Tool(s) /
General Equipment
Cleaning
-
Clean the exhaust manifold using a suitable solvent. Use
a plastic scraping tool to clean the gasket sealing surfaces.
Inspection
-
NOTE:
New exhaust manifold gaskets, studs, nuts and/or
bolts must be installed when an exhaust manifold is serviced.
NOTE:
Use a Straightedge that is calibrated by the
manufacturer to be flat within 0.005 mm (0.0002 in) per running foot of
length, such as Snap-On® GA438A or equivalent. For example, if the
Straightedge is 61 cm (24 in) long, the machined edge must be flat
within 0.010 mm (0.0004 in) from end to end.

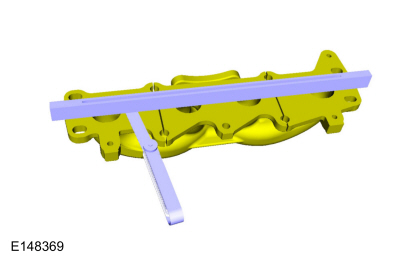

Using the Straightedge and a Feeler Gauge Set, check the
exhaust manifold sealing surface for warpage. If the warpage is greater
than 0.76 mm (0.0299 in), install a new exhaust manifold.
Use the General Equipment: Feeler Gauge
Special Tool(s) /
General Equipment
Feeler Gauge
Check
NOTE:
Refer to the appropriate Section 303-01 for the specification.
NOTE:
Make sure all cylinder head surfaces are clear of
any gasket material, silicone sealant, oil and coolant...
Inspection
NOTE:
Do not clean the dual mass flywheel with compressed air.
NOTE:
Do not clean the dual mass flywheel with any kind of fluid,
use a dry cloth only or damage to the dual mass flywheel may occur...
