Ford Fiesta: Evaporative Emissions - 1.6L EcoBoost (132kW/180PS) – Sigma / Evaporative Emission Canister. Removal and Installation
Ford Fiesta 2014 - 2019 Service Manual / Engine / Evaporative Emissions - 1.6L EcoBoost (132kW/180PS) – Sigma / Evaporative Emission Canister. Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details.
-
With the vehicle in NEUTRAL, position it on a hoist.
Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).
-
Disconnect the negative battery cable.
Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
-
NOTE: Clean the EVAP canister immediate surrounding area of any dirt or foreign material.
-

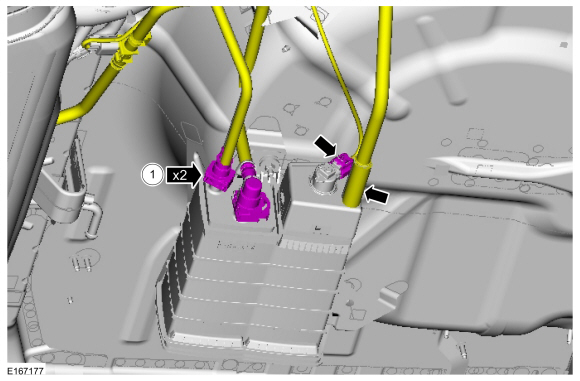

Disconnect the EVAP canister quick connect couplings and the EVAP canister electrical connector.
Refer to: Quick Release Coupling (310-00B Fuel System - General Information - 1.6L EcoBoost (132kW/180PS) – Sigma, General Procedures).
-
Disconnect the EVAP canister quick connect couplings and the EVAP canister electrical connector.
 |
-
-

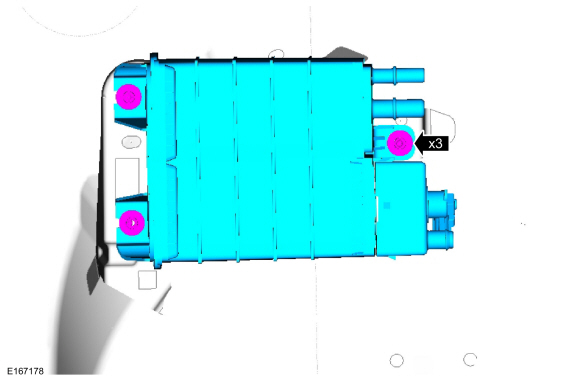

Remove the nuts and the EVAP canister.
Torque: 35 lb.in (4 Nm)
-
Remove the nuts and the EVAP canister.
 |
Installation
-
To install, reverse the removal procedure.
Evaporative Emission System Leak Test. General Procedures
Activation
Disconnect the vapor tube-to-EVAP canister purge valve quick connect coupling (engine side).
Refer to: Quick Release Coupling (310-00B Fuel System - General
Information - 1...
Evaporative Emission Canister Vent Solenoid. Removal and Installation
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the EVAP canister.
Refer to: Evaporative Emission Canister (303-13B Evaporative Emissions -
1...
