Ford Fiesta: Evaporative Emissions - 1.6L EcoBoost (132kW/180PS) – Sigma / Evaporative Emission Canister Purge Valve. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Engine / Evaporative Emissions - 1.6L EcoBoost (132kW/180PS) – Sigma / Evaporative Emission Canister Purge Valve. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

Disconnect the battery.
Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

Remove the air cleaner outlet pipe.
Refer to: Air Cleaner Outlet Pipe (303-12B Intake Air Distribution and Filtering - 1.6L EcoBoost (132kW/180PS) – Sigma, Removal and Installation).

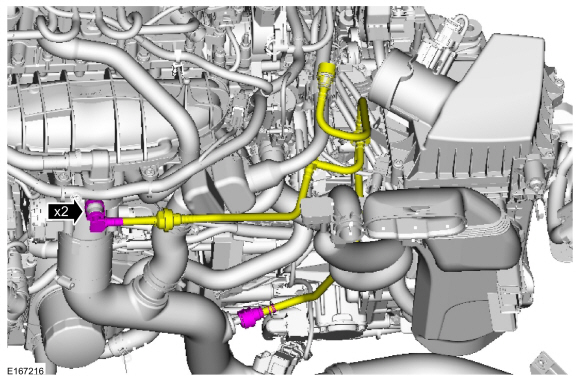

Disconnect the quick release coupling.
Refer to: Quick Release Coupling (310-00B Fuel System - General Information - 1.6L EcoBoost (132kW/180PS) – Sigma, General Procedures).

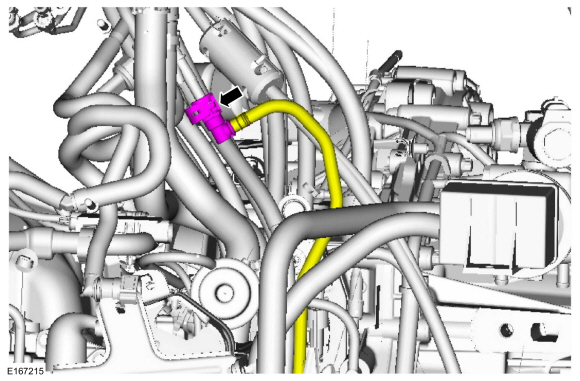

Disconnect the quick release coupling.
Refer to: Quick Release Coupling (310-00B Fuel System - General Information - 1.6L EcoBoost (132kW/180PS) – Sigma, General Procedures).

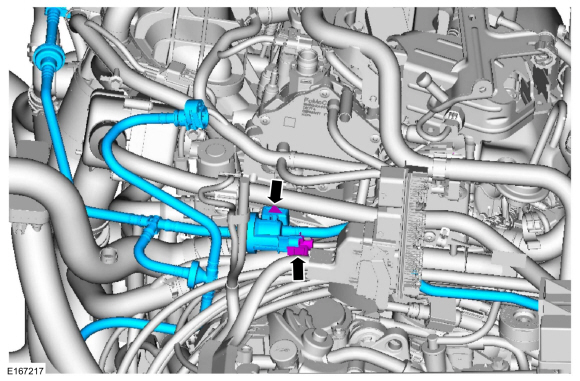

Disconnect the electrical connector and remove the EVAP canister purge valve.

Installation

To install, reverse the removal procedure.
