Ford Fiesta: Clutch - 6-Speed Manual Transmission – B6 / Clutch Disc and Pressure Plate. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Manual Transmission, Clutch, Transfer Case and Power Transfer Unit / Clutch - 6-Speed Manual Transmission – B6 / Clutch Disc and Pressure Plate. Removal and Installation

Removal

Remove the transmission.
Refer to: Transmission (308-03B Manual Transmission - 6-Speed Manual Transmission – B6, Removal).

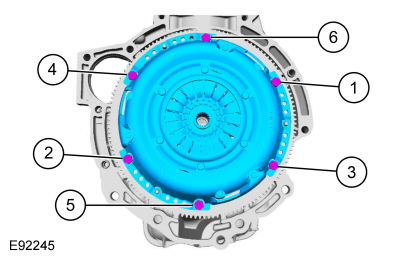

Loosen each bolt 2 turns at a time until all bolts are removed.

Installation

NOTE: Universal clutch alignment tool.

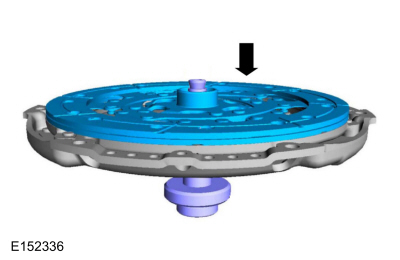

Install the clutch disc on the pressure plate and install a clutch alignment tool in the clutch disc.

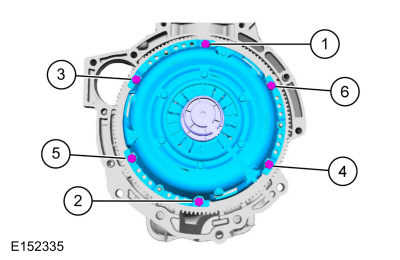

Tighten each bolt 2 turns at a time.
Install the clutch pressure plate and the clutch disc assembly, align the clutch disc and tighten the bolts.
Torque: 21 lb.ft (29 Nm)

Install the transmission.
Refer to: Transmission (308-03B Manual Transmission - 6-Speed Manual Transmission – B6, Installation).

After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure using a diagnostic scan tool.
