Removal

NOTE: Removal steps in this procedure may contain installation details.

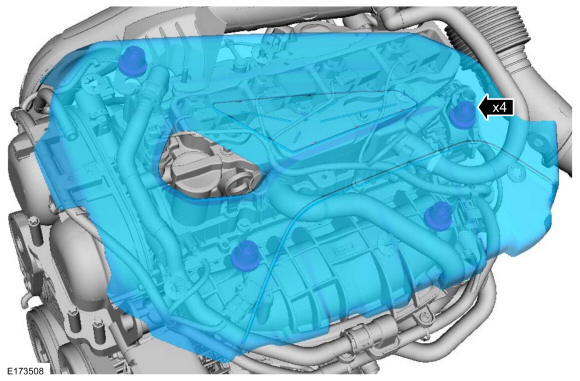

Remove the engine appearance cover.

Remove the air cleaner outlet pipe.
Refer to: Air Cleaner Outlet Pipe (303-12B Intake Air Distribution and Filtering - 1.6L EcoBoost (132kW/180PS) – Sigma, Removal and Installation).

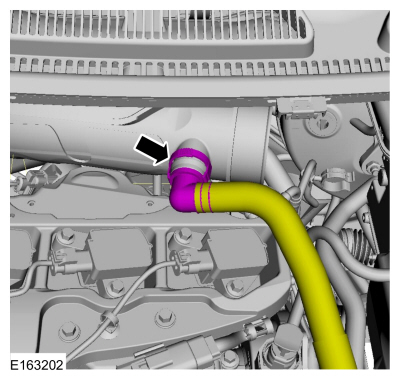

Disconnect the quick release coupling from the air cleaner outlet pipe.

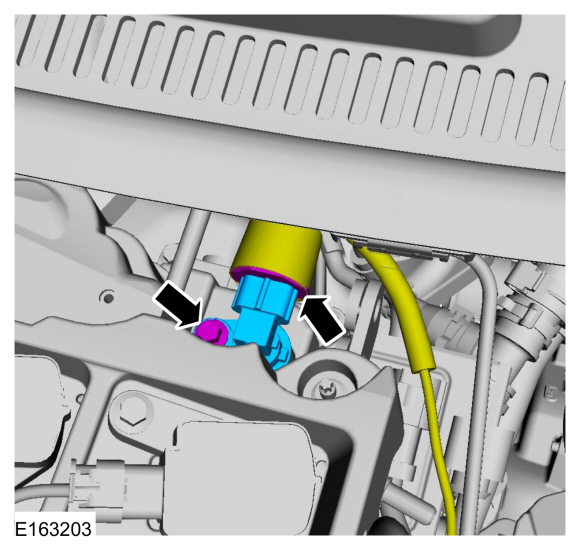

Disconnect the CMP sensor electrical connector, remove the retainer and the CMP sensor RH .
Torque: 80 lb.in (9 Nm)

Installation

To install, reverse the removal procedure.
