Ford Fiesta: Rear Disc Brake / Brake Pads. Removal and Installation
Special Tool(s) /
General Equipment
Brake Caliper Piston Retractor |
Materials
Name |
Specification |
Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid PM-20 |
WSS-M6C65-A2
|
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING:
Before beginning any service procedure in this
manual, refer to health and safety warnings in section 100-00 General
Information. Failure to follow this instruction may result in serious
personal injury.
Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).
-
Remove the wheel and tire.
Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).
-
-
NOTICE:
Make sure that no load is placed on the brake hose.

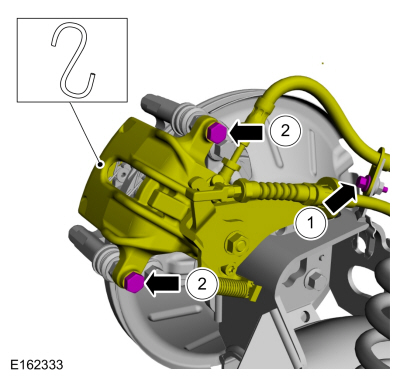

Remove the brake hose bracket bolt.
Torque:
97 lb.in (11 Nm)
-
Remove the bolts and position the brake caliper and anchor plate assembly aside.
Torque:
26 lb.ft (35 Nm)
-
NOTICE:
Make sure that the mating faces are clean and free of foreign material.
NOTE:
Note the position of the components before removal.

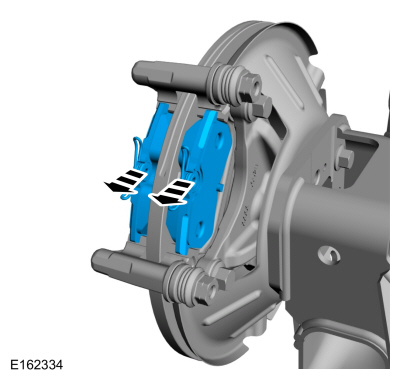

Remove the brake pads.
-

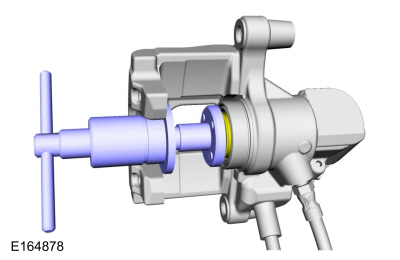

Retract the brake caliper piston into the brake caliper bore.
Use the General Equipment: Brake Caliper Piston Retractor
Installation
-
To install, reverse the removal procedure.
-
Depress the brake pedal, check the brake fluid level in
the brake fluid reservoir and top up as necessary with brake fluid.
Material: Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid
/ PM-20
(WSS-M6C65-A2)
Removal
Refer to: Wheel Knuckle - 1.6L EcoBoost (132kW/180PS) - Sigma (204-02)
.
Installation
To install, reverse the removal procedure...
Removal
NOTICE:
If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.
NOTE:
Removal steps in this procedure may contain installation details...
