Ford Fiesta: Rear Disc Brake / Brake Disc. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Brake System / Rear Disc Brake / Brake Disc. Removal and Installation

Materials

Name Specification
Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid
PM-20
WSS-M6C65-A2

Motorcraft® Metal Brake Parts Cleaner
PM-4-A, PM-4-B, APM-4-C
-


Removal

NOTE: Removal steps in this procedure may contain installation details.

  1.   WARNING: Before beginning any service procedure in this manual, refer to health and safety warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).
  1. Remove the wheel and tire.
    Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).

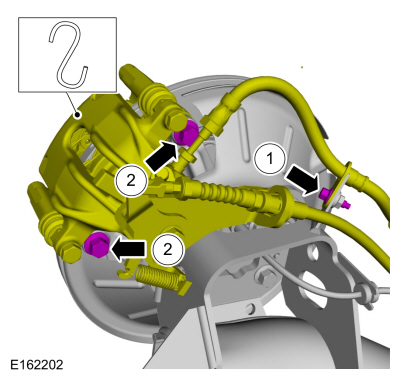

    1. Remove the brake hose bracket bolt.
      Torque: 97 lb.in (11 Nm)
    1. Remove the bolts and position the brake caliper and anchor plate assembly aside.
      Torque: 52 lb.ft (70 Nm)

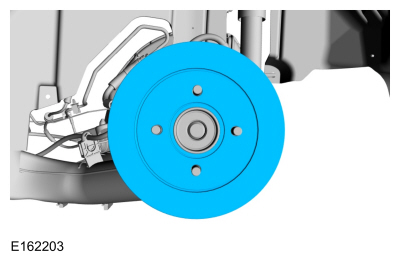

  1. Remove the brake disc.

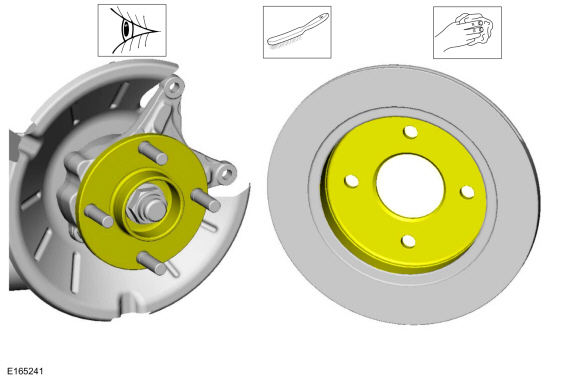

  1. NOTE: Make sure that the mating faces are clean and free of foreign material.

    Clean the brake disc-to-wheel hub mating surfaces.
    Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B, APM-4-C

Installation

  1. To install, reverse the removal procedure.
  1. Depress the brake pedal, check the brake fluid level in the brake fluid reservoir and top up as necessary with brake fluid.
    Material: Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid / PM-20 (WSS-M6C65-A2)
