Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the wheel and tire.
    Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).
  1. NOTICE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

    NOTICE: Make sure that all openings are sealed.

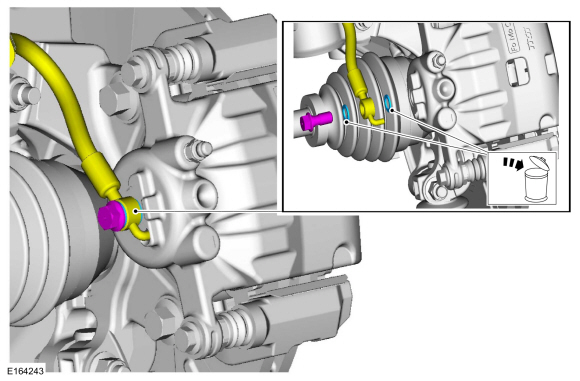

    Remove the flow bolt and detach the front brake hose. Discard the washers.
    Torque:
      Stage 1:  89 lb.in (10 Nm)
      Stage 2:  90°

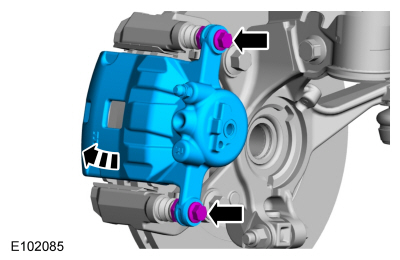

  1. Remove the guide pin bolts and the brake caliper.
    Torque: 19 lb.ft (26 Nm)

Installation

  1. To install, reverse the removal procedure.
  1. Bleed the brake system.
    Refer to: Brake System Pressure Bleeding (206-00 Brake System - General Information, General Procedures).
