Ford Fiesta: Side Panel Sheet Metal Repairs / B-Pillar and Reinforcement. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Side Panel Sheet Metal Repairs / B-Pillar and Reinforcement. Removal and Installation

Special Tool(s) / General Equipment

Resistance Spotwelding Equipment
8 mm Drill Bit
MIG/MAG Welding Equipment
Spot Weld Drill Bit
Locking Pliers

Removal

NOTICE: The B-pillar inner reinforcement is constructed of boron steel and cannot be sectioned. Replacement of the B-pillar inner reinforcement must be done at the factory seams.

WARNING: Before beginning any service procedure in this manual, refer to health and safety warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Body Repair Health and Safety and General Precautions (100-00 General Information, Description and Operation).

Remove the B-pillar outer panel.
Refer to: B-Pillar Outer Panel (501-29 Side Panel Sheet Metal Repairs, Removal and Installation).

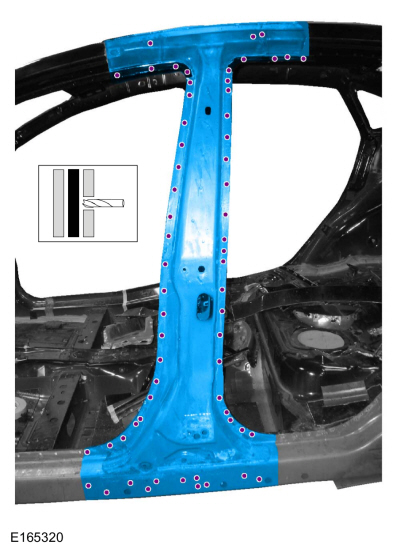

Drill out the spot welds and remove the B-pillar reinforcement.
Use the General Equipment: Spot Weld Drill Bit

Installation

NOTICE: The B-pillar inner reinforcement is constructed of boron steel and cannot be sectioned. Replacement of the B-pillar inner reinforcement must be done at the factory seams.

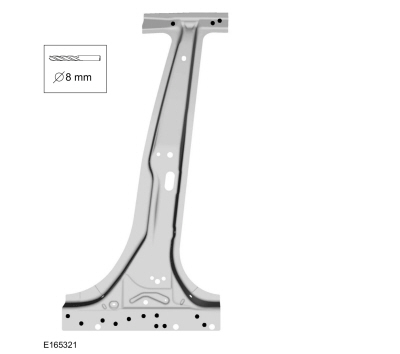

Drill plug weld holes in the replacement panel.
Use the General Equipment: 8 mm Drill Bit

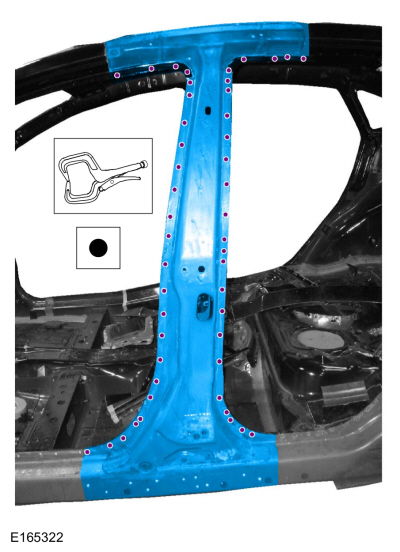

Install, clamp and spot weld the B-pillar reinforcement.
Use the General Equipment: Locking Pliers
Use the General Equipment: Resistance Spotwelding Equipment

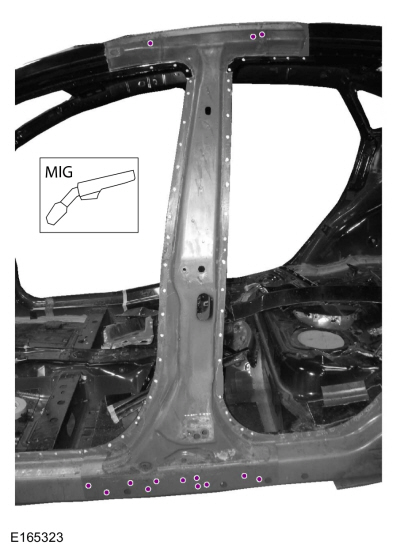

Install plug welds.
Use the General Equipment: MIG/MAG Welding Equipment

Install the B-pillar outer panel.
Refer to: B-Pillar Outer Panel (501-29 Side Panel Sheet Metal Repairs, Removal and Installation).
