Ford Fiesta: Instrument Panel and Console / Auxiliary Power Point. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Instrument Panel and Console / Auxiliary Power Point. Removal and Installation

Special Tool(s) / General Equipment

501-039
Remover, Power Point Socket
TKIT-1998-FLM
TKIT-1998-LM

Removal

  1. Open the power point cover.

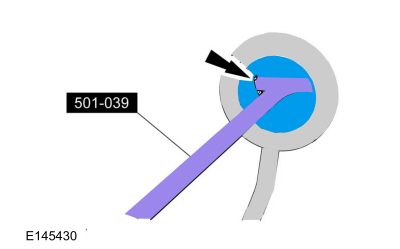

    Use Special Service Tool: 501-039  Remover, Power Point Socket.
  1. Remove the power point socket.

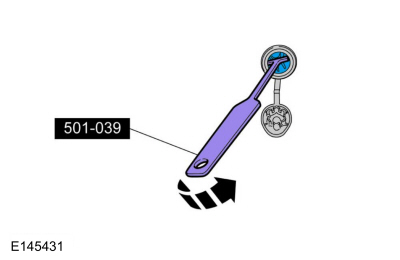

    Use Special Service Tool: 501-039  Remover, Power Point Socket.
  1. Disconnect the electrical connector.

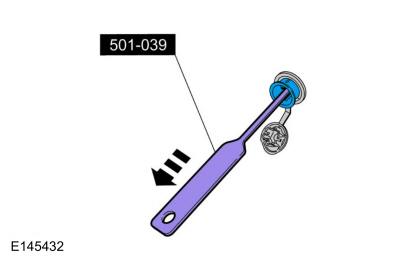

    Use Special Service Tool: 501-039  Remover, Power Point Socket.

Installation

  1. To install, reverse the removal procedure.
