Ford Fiesta: Intake Air Distribution and Filtering - 1.6L EcoBoost (132kW/180PS) – Sigma / Air Cleaner Outlet Pipe. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Engine / Intake Air Distribution and Filtering - 1.6L EcoBoost (132kW/180PS) – Sigma / Air Cleaner Outlet Pipe. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

- Disconnect and position aside the vent tube.

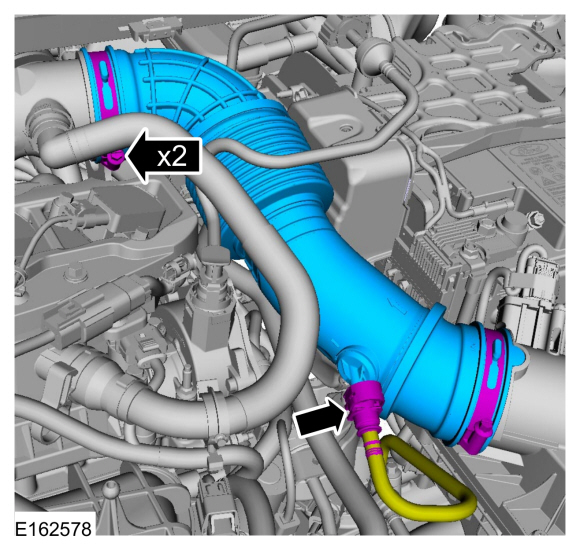

- Loosen the clamps and remove the air cleaner outlet pipe.
  Torque: 44 lb.in (5 Nm)

Installation

To install, reverse the removal procedure.

Air Cleaner. Removal and Installation

Removal NOTE: Removal steps in this procedure may contain installation details. Disconnect the IAT sensor electrical connector...

Charge Air Cooler (CAC). Removal and Installation

Removal NOTE: Removal steps in this procedure may contain installation details. Remove the front bumper cover. Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation)...
