Ford Fiesta: Seatbelt Systems / Child Safety Seat Tether Anchor. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Seatbelt Systems / Child Safety Seat Tether Anchor. Removal and Installation

Removal

NOTE: If a child safety seat was in use during a collision, inspect the child safety seat mounting areas and restore the vehicle to the original production configuration.

NOTE: Removal steps in this procedure may contain installation details.

Remove the parcel shelf.
Refer to: Parcel Shelf (501-05 Interior Trim and Ornamentation, Removal and Installation).

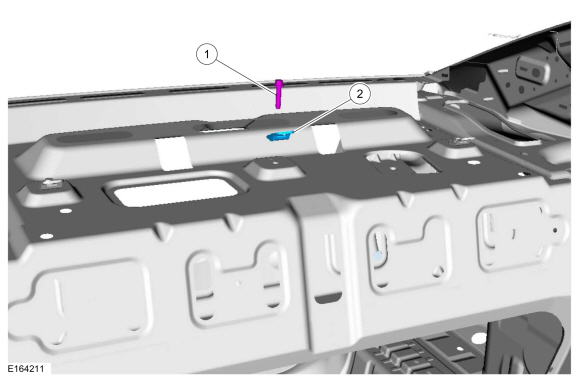

1. Remove the bolt.
  Torque: 21 lb.ft (28 Nm)
1. Remove the child safety seat tether anchor.

Installation

To install, reverse the removal procedure.
