Ford Fiesta: Body Repairs - Vehicle Specific Information and Tolerance Checks / Vehicle Specific Body Construction. Description and Operation
Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Body Repairs - Vehicle Specific Information and Tolerance Checks / Vehicle Specific Body Construction. Description and Operation
For recommended metal repair guidelines and recommendations, refer to the following illustrations and:
For additional information, refer to: Specifications (501-25 Body Repairs - General Information, Specifications).

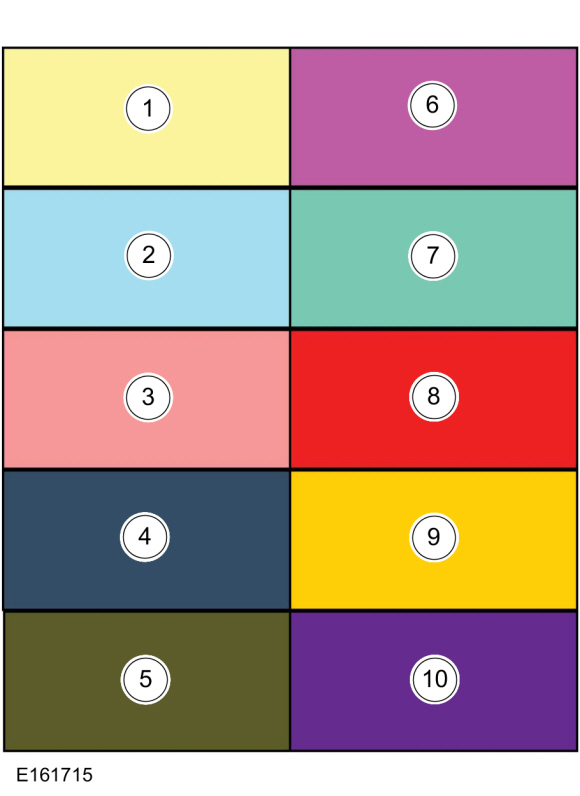

Steel Type Legend
| Item | Steel Type | Color |
| 1 | Mild Steel | Yellow |
| 2 | Bake Hardened Steel (BH) | Light Blue |
| 3 | Solid Solution Strength | Pink |
| 4 | High Strength Low Alloy (HSLA) | Dark Blue |
| 5 | Dual Phase (DP) 500, 600 Class Steel | Green |
| 6 | Dual Phase (DP) 700, 800, 900, 1000 Class Steel | Fuchsia |
| 7 | Laminate Steel | Teal |
| 8 | Ultra High Strength Steel (UHSS) Martensitic, Boron | Red |
| 9 | Transformation Induced Plasticity Steel (TRIP) | Gold |
| 10 | Aluminum | Purple |

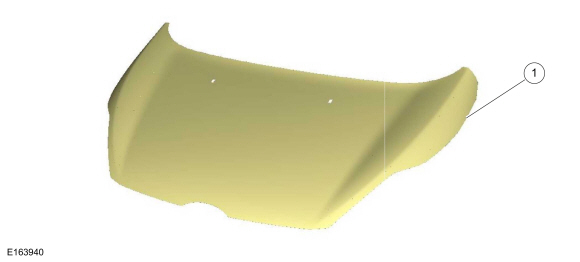

Hood
| Item | Description | Steel Type |
| 1 | Hood | Mild steel |

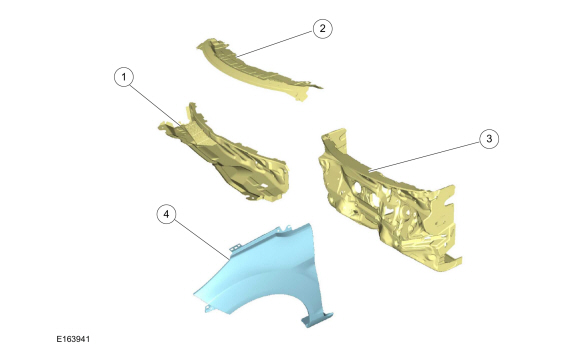

Cowl, Dash Panel and Fender
NOTE: LH side shown, RH side similar.
| Item | Description | Steel Type |
| 1 | Upper dash panel reinforcement | Mild steel |
| 2 | Cowl panel | Mild steel |
| 3 | Dash panel | Mild steel |
| 4 | Fender | Bake Hardened (BH) 210 steel |

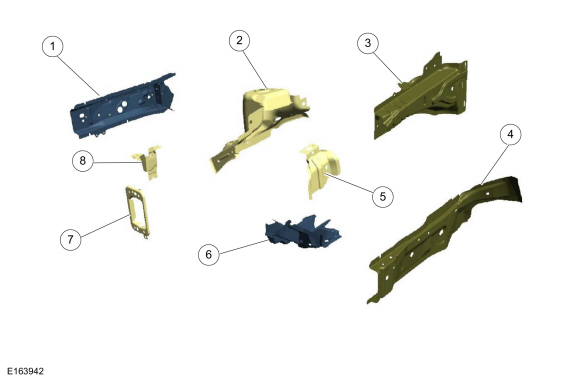

Front Rail and Apron
NOTE: LH side shown, RH side similar.
| Item | Description | Steel Type |
| 1 | Fender bracket | High-Strength Low Alloy (HSLA) 340 steel |
| 2 | Fender apron assembly | Mild steel |
| 3 | Fender reinforcement | Dual-Phase (DP) 600 steel |
| 4 | Frame rail, outer | Dual-Phase (DP) 600 steel |
| 5 | Bracket (part of outer frame rail and apron | Mild steel |
| 6 | Brace | High Strength Low Alloy Steel (HSLA) |
| 7 | Bumper mounting bracket | Mild steel |
| 8 | Bracket | Mild steel |
NOTE: 5-door hatchback roof panel configurations shown, 4-door sedan is similar.

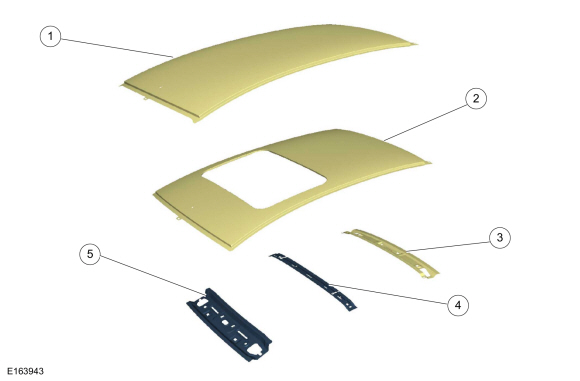

Roof Panel(s)
| Item | Description | Steel Type |
| 1 | Roof panel without roof opening panel | Mild steel |
| 2 | Roof panel with roof opening panel | Mild steel |
| 3 | Rear header panel | Mild steel |
| 4 | Center reinforcement (without roof opening panel) | High-Strength Low Alloy (HSLA) 350 steel |
| 5 | Windshield header panel | High-Strength Low Alloy (HSLA) 350 steel |

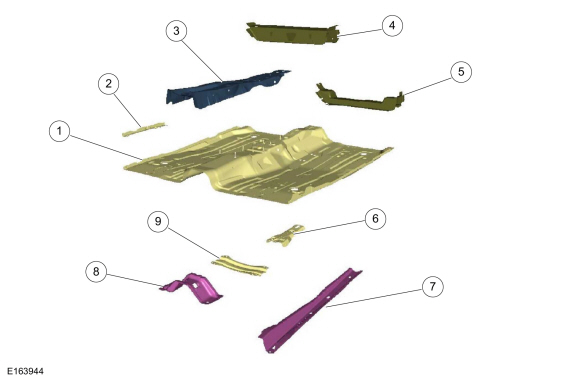

Front Floor Pan Assembly
| Item | Description | Steel Type |
| 1 | Front floor pan | Mild steel |
| 2 | Side member | Mild steel |
| 3 | Floor tunnel (part of front floor pan assembly) | High-Strength Low Alloy (HSLA) 300 steel |
| 4 | Cross member - front, upper | Dual-Phase (DP) 600 steel |
| 5 | Crossmember | Dual-Phase (DP) 600 steel |
| 6 | Parking brake cable reinforcement | Mild steel |
| 7 | Side member extension (2 required) | Dual-Phase (DP) 780 steel |
| 8 | Reinforcement | Dual-Phase (DP) 780 steel |
| 9 | Crossmember | Mild steel |
NOTE: 4-door sedan shown, 5-door hatchback is similar.
Rear Floor Pan Assembly
| Item | Description | Steel Type |
| 1 | Reinforcement | High-Strength Low Alloy (HSLA) 240 steel |
| 2 | Side member | Dual-Phase (DP) 600 steel |
| 3 | Reinforcement | Dual-Phase (DP) 600 steel |
| 4 | Gusset | Mild steel |
| 5 | Reinforcement | Dual-Phase (DP) 600 steel |
| 6 | Reinforcement | High-Strength Low Alloy (HSLA) 240 steel |
| 7 | Side member | Dual-Phase (DP) 600 steel |
| 8 | Bumper mounting bracket | Dual-Phase (DP) 600 steel |
| 9 | Bumper mounting bracket | Dual-Phase (DP) 600 steel |
| 10 | Bracket | Mild steel |
| 11 | Bracket | Mild steel |
| 12 | Bracket | High-Strength Low Alloy (HSLA) 300 steel |
| 13 | Floor side member | Dual-Phase (DP) 600 steel, High-Strength Low Alloy (HSLA) 350 steel |
| 14 | Bracket | Mild steel |
| 15 | Bracket | Mild steel |
| 16 | Bracket | High-Strength Low Alloy (HSLA) 300 steel |
| 17 | Fuel tank bracket | Mild steel |
| 18 | Bracket | Mild steel |
| 19 | Crossmember | High-Strength Low Alloy (HSLA) 300 steel |
| 20 | Floor side member | Dual-Phase (DP) 600 steel, High-Strength Low Alloy (HSLA) 350 steel |
| 21 | Reinforcement | High-Strength Low Alloy (HSLA) 300 steel |
| 22 | Floor pan assembly | Mild steel |

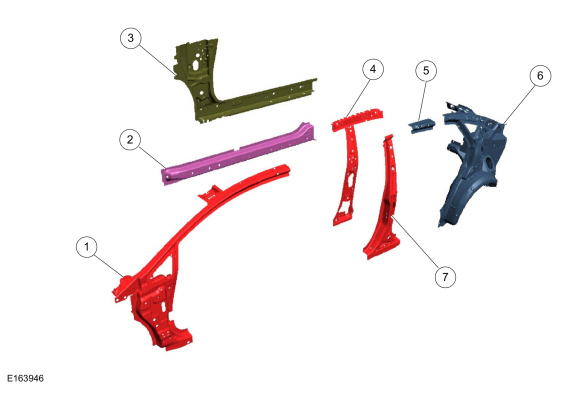

Body Side Panels - 4-door Sedan
NOTE: LH side shown, RH similar.
| Item | Description | Steel Type |
| 1 | A-pillar inner assembly | Boron steel |
| 2 | Rocker panel reinforcement | Dual-Phase (DP) 780 steel |
| 3 | Cowl side panel inner assembly | Dual-Phase (DP) 600 steel |
| 4 | B-pillar inner reinforcement | Boron steel |
| 5 | Upper body reinforcement | High-Strength Low Alloy (HSLA) steel |
| 6 | Quarter panel and wheelhouse | High-Strength Low Alloy (HSLA) steel |
| 7 | B-pillar inner | Boron steel |

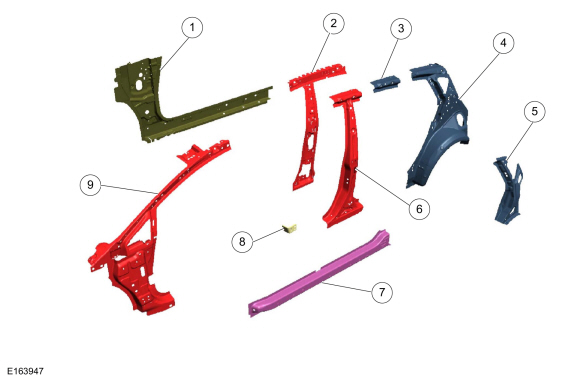

Body Side Panels 5-door Hatchback
NOTE: LH side shown, RH similar.
| Item | Description | Steel Type |
| 1 | Cowl side panel inner assembly | Dual-Phase (DP) 600 steel |
| 2 | B-pillar inner reinforcement | Boron steel |
| 3 | Upper body reinforcement | High-Strength Low Alloy (HSLA) steel |
| 4 | Quarter panel and wheelhouse | High-Strength Low Alloy (HSLA) steel |
| 5 | Reinforcement | High-Strength Low Alloy (HSLA) steel |
| 6 | B-pillar inner | Boron steel |
| 7 | Rocker panel reinforcement | Dual-Phase (DP) 780 steel |
| 8 | Support plate | Mild steel |

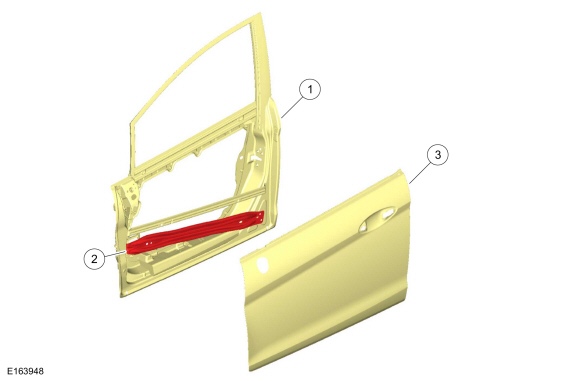

Front Door
| Item | Description | Steel Type |
| 1 | Inner door assembly | Mild steel |
| 2 | Intrusion beam (part of inner door assembly) | Boron steel |
| 3 | Front door panel | Mild steel |

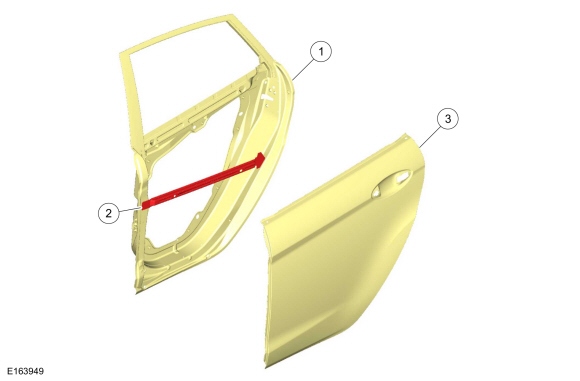

Rear Door
| Item | Description | Steel Type |
| 1 | Inner door assembly | Mild steel |
| 2 | Intrusion beam (part of inner door assembly) | Boron steel |
| 3 | Rear door panel | Mild steel |

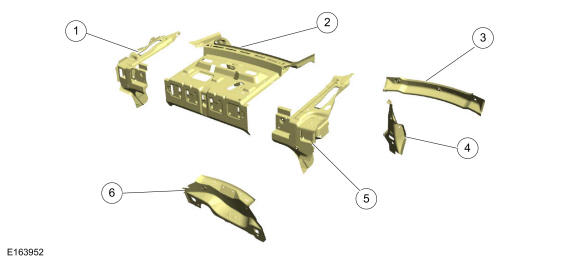

Rear Panels - 4-Door Sedan
| Item | Description | Steel Type |
| 1 | Reinforcement | Mild steel |
| 2 | Package tray | Mild steel |
| 3 | Reinforcement | Mild steel |
| 4 | Rear lamp closing panel | Mild steel |
| 5 | Reinforcement | Mild steel |
| 6 | Back panel | Mild steel |

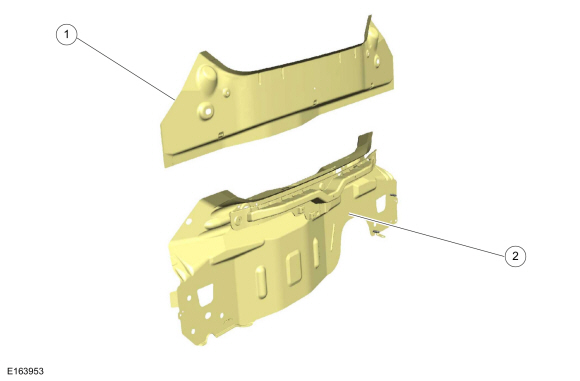

Rear Panels - 5-Door Hatchback
| Item | Description | Steel Type |
| 1 | Reinforcement | Mild steel |
| 2 | Back panel | Mild steel |

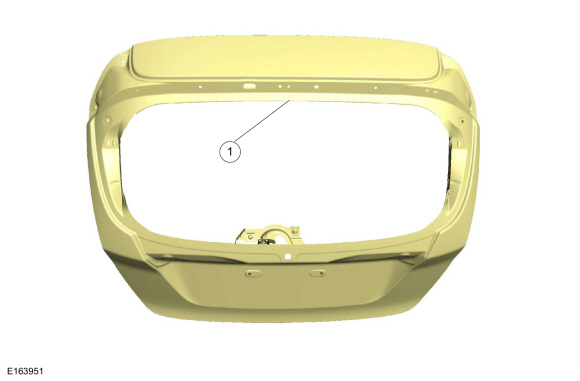

Liftgate - 5-Door Hatchback
| Item | Description | Steel Type |
| 1 | Liftgate assembly | Mild steel |

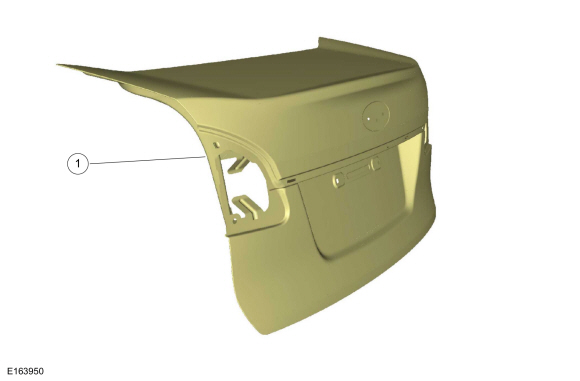

Luggage Compartment Lid - 4-Door Sedan
| Item | Description | Steel Type |
| 1 | Luggage compartment lid | Mild steel |
Body Panel Sectioning. General Procedures
Special Tool(s) /
General Equipment
Resistance Spotwelding Equipment
Plasma Cutter
Air Body Saw
MIG/MAG Welding Equipment
Spot Weld Drill Bit
Materials
Name
Specification
Seam SealerTA-2-B, 3M™ 08308, LORD Fusor® 803DTM
-
Repair
NOTICE:
Do not begin removal of the vehicle body side until the replacement pa..
