Ford Fiesta: Steering Wheel and Column Electrical Components / Steering Column Multifunction Switch RH. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Steering System / Steering Wheel and Column Electrical Components / Steering Column Multifunction Switch RH. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

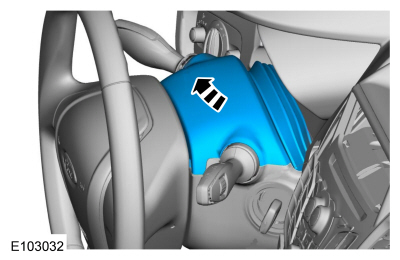

Remove the upper steering column shroud.

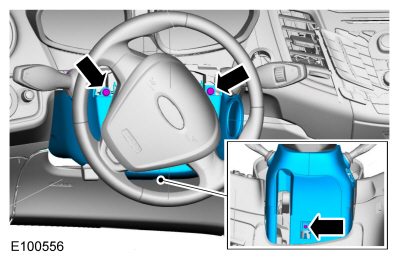

Remove the screws and the lower steering column shroud.

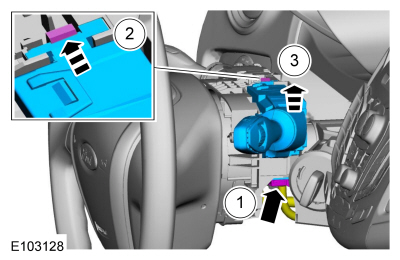

1. Disconnect the electrical connector.
1. Release the tab.
1. Remove the steering column multifunction switch RH .

Installation

To install, reverse the removal procedure.
