Ford Fiesta: Seatbelt Systems / Rear Seatbelt Buckle. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Seatbelt Systems / Rear Seatbelt Buckle. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the rear seat cushion.
Refer to: Rear Seat Cushion (501-10 Seating, Removal and Installation).

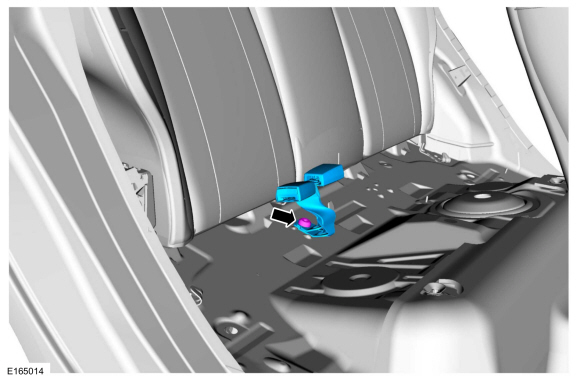

Remove the bolt and the rear seatbelt buckles.
Torque: 35 lb.ft (48 Nm)

Installation

NOTE: During installation, make sure the seatbelt webbing is not twisted and the seatbelts and buckles are accessible to the occupants.
To install, reverse the removal procedure.

Check the seatbelt system for correct operation.
Refer to: Seatbelt Systems (501-20A Seatbelt Systems, Diagnosis and Testing).
