Ford Fiesta: Instrument Panel and Console / Instrument Panel Passenger Side Finish Panel. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Instrument Panel and Console / Instrument Panel Passenger Side Finish Panel. Removal and Installation

Removal

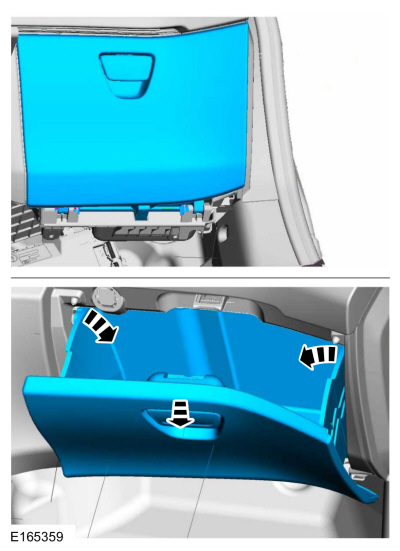

Release the retaining tabs and remove the glove compartment.

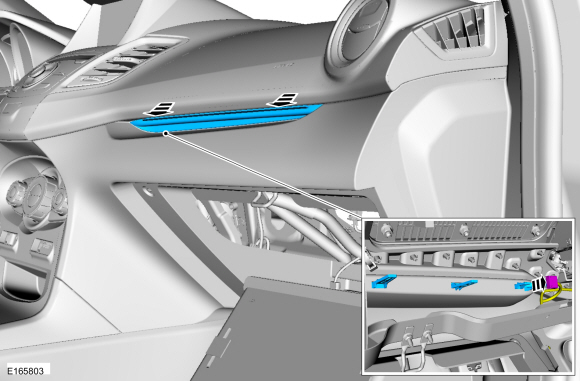

Release the retaining tabs and remove the instrument panel passenger side finish panel. Disconnect the electrical connector.

Installation

To install, reverse the removal procedure.

Instrument Panel Lower Trim Panel. Removal and Installation

Removal NOTE: Automatic transmission shown, manual transmission similar. Remove the selector lever finish panel. Release the clips and remove the instrument panel lower trim panel...
