Ford Fiesta: Fuel System - General Information - 1.6L EcoBoost (132kW/180PS) – Sigma / Fuel Tank Draining. General Procedures

Ford Fiesta 2014 - 2019 Service Manual / Fuel System / Fuel System - General Information - 1.6L EcoBoost (132kW/180PS) – Sigma / Fuel Tank Draining. General Procedures

Special Tool(s) / General Equipment

292-00004
Fuel Tanker 100 GPM

Draining

NOTICE: Do not remove the hose clamp at the filler neck hose to fuel tank connection. The plastic tank is susceptible to damage with over torquing and or multiple re-torques.

Disconnect the battery ground cable.
Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

NOTE: Some residual fuel may remain in the fuel tank filler pipe. Carefully drain into a suitable container.

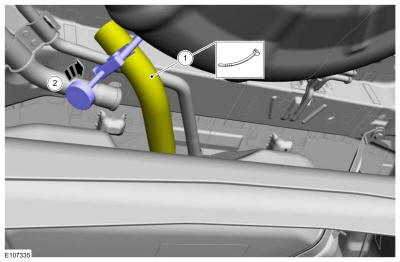

Release the clamp and position the fuel tank filler pipe hose aside.
Use Special Service Tool: 292-00004 Fuel Tanker 100 GPM.

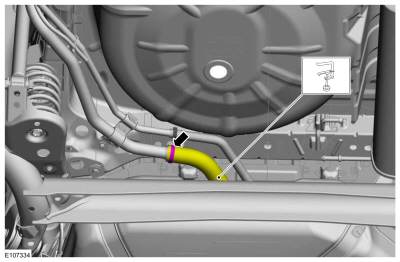

Secure the fuel tank filler pipe hose above the fuel level.

Insert a fuel drain tube into the fuel tank filler pipe hose, attach the Fuel Storage Tanker and drain as much fuel as possible from the fuel tank.
Use Special Service Tool: 292-00004 Fuel Tanker 100 GPM.

Fuel System Pressure Check. General Procedures

Special Tool(s) / General Equipment 310-D009 (D95L-7211-A) Fuel Pressure Test Kit Check NOTICE: This pressure check is for the low pressure side of the fuel system...

Quick Release Coupling. General Procedures

Disconnect NOTICE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur...
