Ford Fiesta: Front Suspension / Front Suspension - Component Location. Description and Operation

Ford Fiesta 2014 - 2019 Service Manual / Suspension / Front Suspension / Front Suspension - Component Location. Description and Operation

NOTE: The ABS sensor rings are built into the seals in the front wheel bearings. They must be checked during servicing to ensure they are correctly positioned.

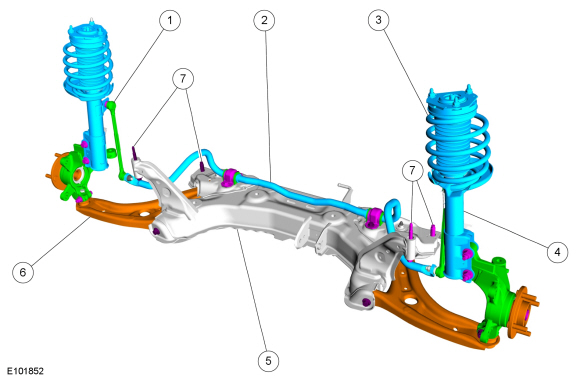

Item Description
1 Stabilizer bar link
2 Stabilizer bar
3 Suspension unit
4 Shock absorber unit
5 Subframe
6 Lower arm
7 Subframe attachment points

    Front Suspension

    ..

    Front Suspension - Overview. Description and Operation

    General A newly developed McPherson front suspension with L-shaped lower arms is used. The lower arm bushes have been enlarged compared with the previous model...
