Ford Fiesta: Front Suspension / Front Stabilizer Bar Bushing. Removal and Installation
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
With the vehicle in NEUTRAL, position it on a hoist.
Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).
-

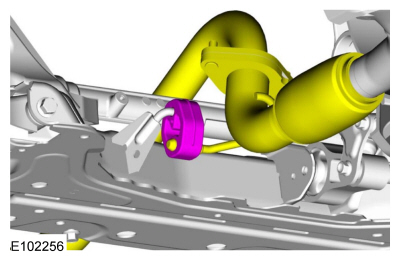

Disconnect the exhaust isolator.
-

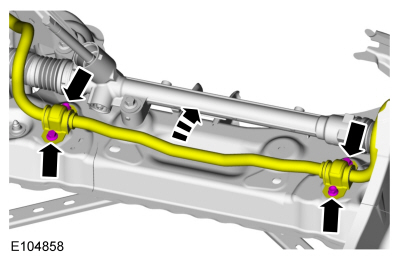

Remove and discard the front stabilizer bar bracket bolts and position aside the front stabilizer bar.
Torque:
35 lb.ft (48 Nm)
-
NOTE:
Note the position of each component before removal.

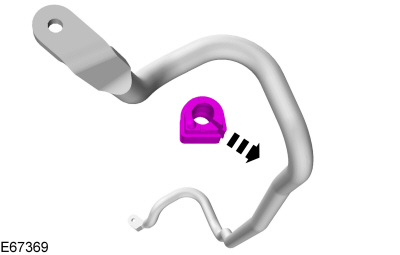

Remove the front stabilizer bar bushings.
Installation
-
NOTICE:
Stabilizer bar rubber bushes are grease-sensitive. Make sure bushes are always installed in dry condition.
NOTE:
Make sure that the mating faces are clean and free of foreign material.
NOTE:
Make sure that these components are installed to the noted removal position.

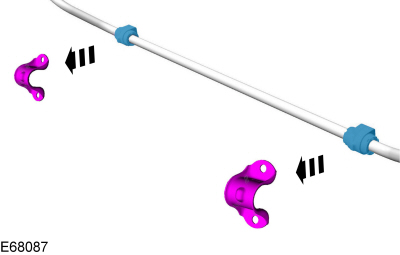

Replace the front stabilizer bar bushings.
-
NOTE:

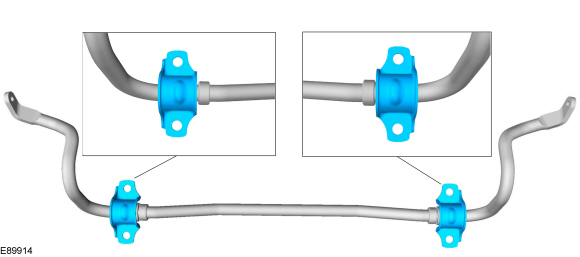

Make sure that the clamp is installed to the same orientation as when removed.
On both sides.
Install the new front stabilizer bar bracket and bolts.
-
To install, reverse the removal procedure.
