Ford Fiesta: Front End Sheet Metal Repairs / Front Side Member and Fender Apron Panel LH. Removal and Installation
Special Tool(s) /
General Equipment
Resistance Spotwelding Equipment |
Grinder |
8 mm Drill Bit |
MIG/MAG Welding Equipment |
Spot Weld Drill Bit |
Removal
-
WARNING:
Before beginning any service procedure in this
section, refer to Safety Warnings in section 100-00 General Information.
Failure to follow this instruction may result in serious personal
injury.
Refer to: Body Repair Health and Safety and General Precautions (100-00 General Information, Description and Operation).
-
If required, dimensionally restore vehicle to pre-accident condition.
Refer to: Body and Frame (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation).
-
Remove the fender apron reinforcement panel.
Refer to: Fender Apron Panel Reinforcement (501-27 Front End Sheet Metal Repairs, Removal and Installation).
-

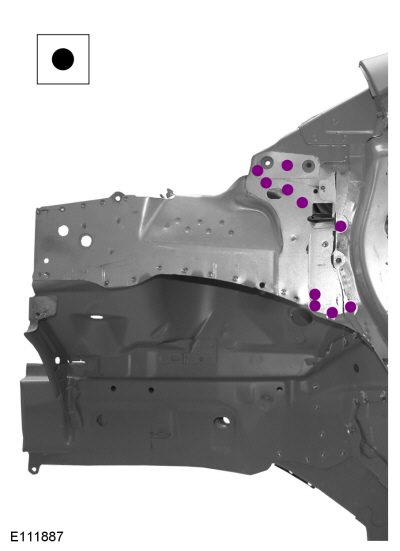

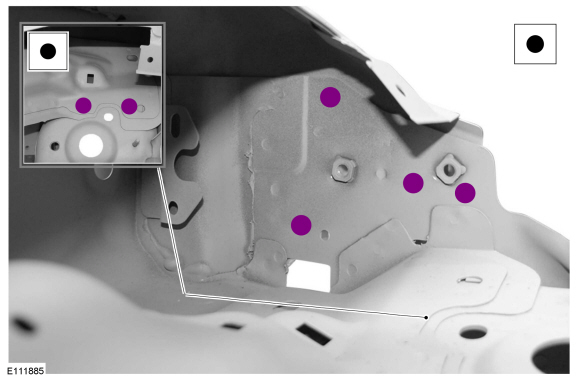

Drill out the spot welds.
Use the General Equipment: Spot Weld Drill Bit
-

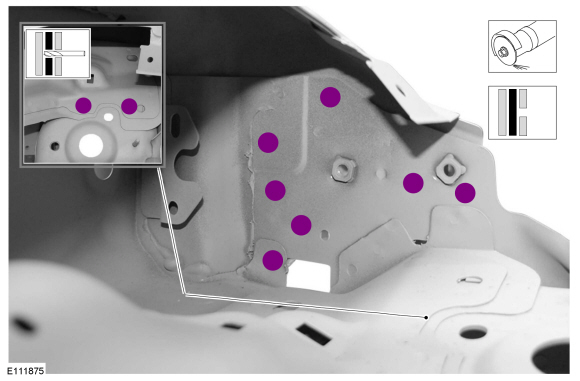

Remove the spot welds.
Use the General Equipment: Spot Weld Drill Bit
Use the General Equipment: Grinder
-

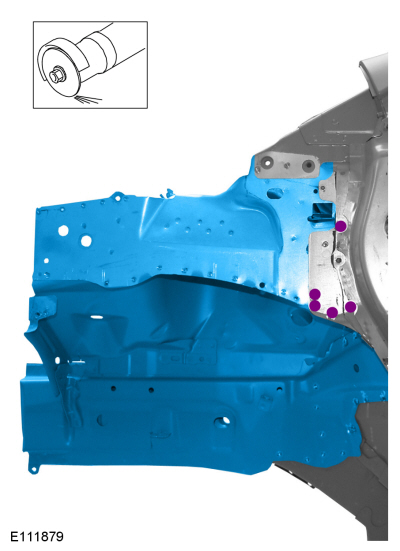

Grind out the spot welds.
Use the General Equipment: Grinder
-
Grind out the spot weld.
Use the General Equipment: Grinder
-

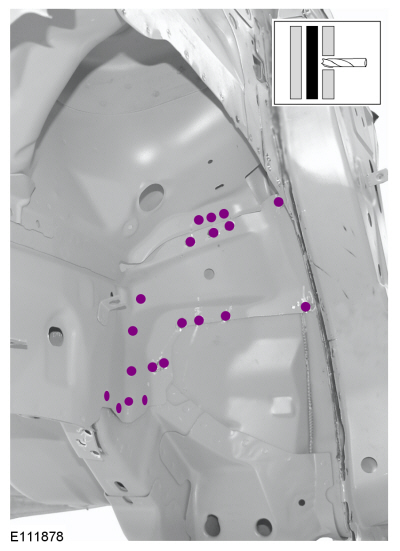

Drill out the spot welds.
Use the General Equipment: Spot Weld Drill Bit
-
Grind out from inside.

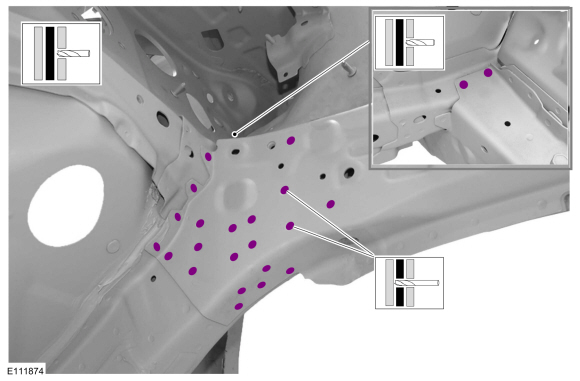

Grind out the spot welds and remove the front side member section.
Use the General Equipment: Grinder
Installation
-

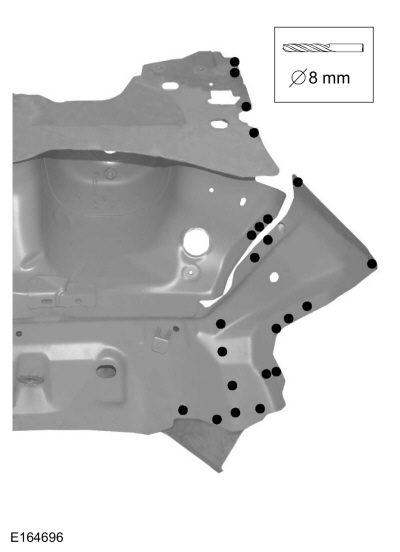

Drill plug welds holes in replacement panel.
Use the General Equipment: 8 mm Drill Bit
-

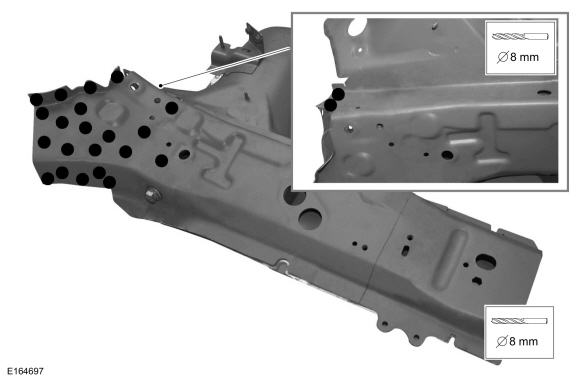

Drill plug welds holes in replacement panel.
Use the General Equipment: 8 mm Drill Bit
-
Check for dimensional accuracy before welding.
Install the LH fender apron panel and plug welds.
Refer to: Body and Frame (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation).
Use the General Equipment: MIG/MAG Welding Equipment
-

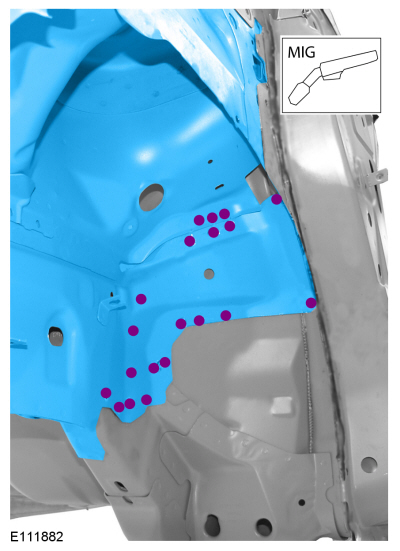

Install plug welds.
Use the General Equipment: MIG/MAG Welding Equipment
-

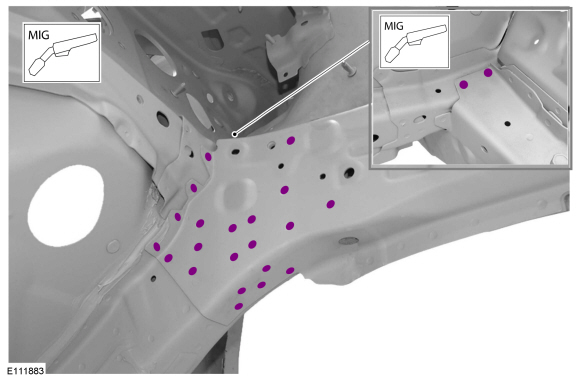

Install plug welds.
Use the General Equipment: MIG/MAG Welding Equipment
-

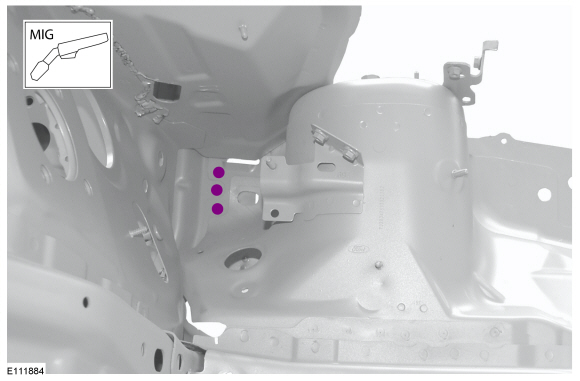

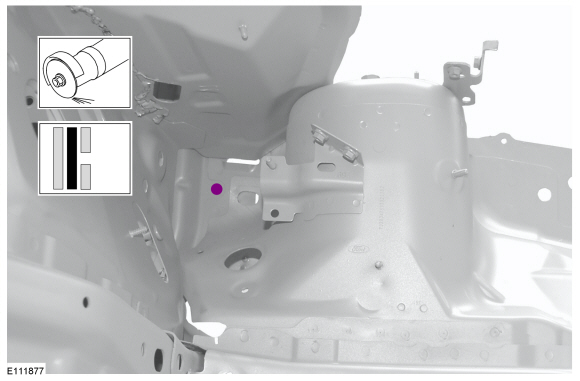

Install spot welds.
Use the General Equipment: Resistance Spotwelding Equipment
-

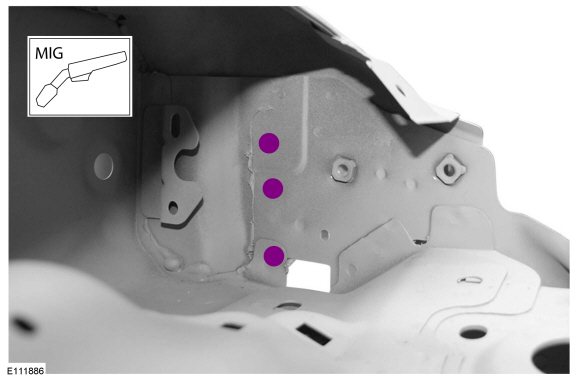

Install plug welds.
Use the General Equipment: MIG/MAG Welding Equipment
-
Install spot welds.
Use the General Equipment: Resistance Spotwelding Equipment
-
Restore corrosion protection.
Refer to: Corrosion Prevention (501-25 Body Repairs - General Information, General Procedures).
-
Install the fender apron reinforcement panel.
Refer to: Fender Apron Panel Reinforcement (501-27 Front End Sheet Metal Repairs, Removal and Installation).
Special Tool(s) /
General Equipment
Resistance Spotwelding Equipment
Grinder
8 mm Drill Bit
MIG/MAG Welding Equipment
Spot Weld Drill Bit
Removal
WARNING:
Before beginning any service procedure in this
section, refer to Safety Warnings in section 100-00 General Information...
Special Tool(s) /
General Equipment
Resistance Spotwelding Equipment
Air Body Saw
8 mm Drill Bit
MIG/MAG Welding Equipment
Spot Weld Drill Bit
Removal
WARNING:
Before beginning any service procedure in this
manual, refer to Safety Warnings in section 100-00 General Information...
