Ford Fiesta: Engine Cooling - 1.6L EcoBoost (132kW/180PS) – Sigma / Coolant Bypass Solenoid Valve. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Engine / Engine Cooling - 1.6L EcoBoost (132kW/180PS) – Sigma / Coolant Bypass Solenoid Valve. Removal and Installation

Special Tool(s) / General Equipment

Hose Clamp Remover/Installer

Removal

NOTE: Removal steps in this procedure may contain installation details.

Drain the cooling system.
Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding (303-03B Engine Cooling - 1.6L EcoBoost (132kW/180PS) – Sigma, General Procedures).

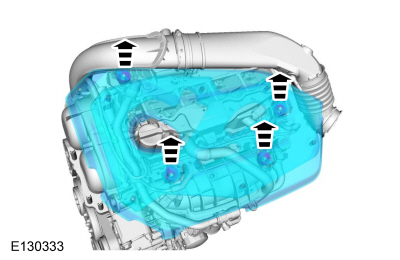

Remove the engine appearance cover.

Position the resonator assembly aside.

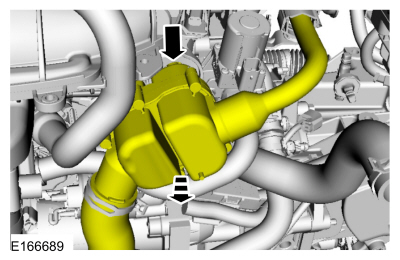

1. Disconnect the electrical connector.

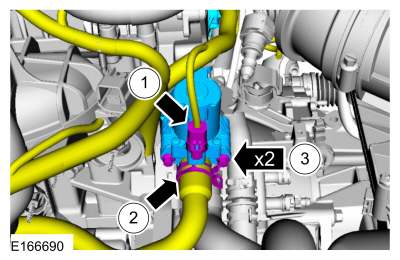

1. Release the clamp and disconnect the coolant hose.
  Use the General Equipment: Hose Clamp Remover/Installer
1. Remove the bolts and the coolant bypass solenoid valve.
  Torque: 89 lb.in (10 Nm)

Installation

To install, reverse the removal procedure.
