Ford Fiesta: Rear Disc Brake / Brake Caliper Anchor Plate. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Brake System / Rear Disc Brake / Brake Caliper Anchor Plate. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the brake pads.
    Refer to: Brake Pads (206-04 Rear Disc Brake, Removal and Installation).

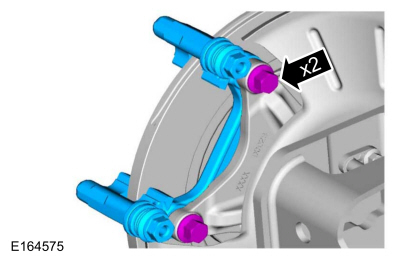

  1. Remove the bolts and the brake caliper anchor plate.
    Torque: 52 lb.ft (70 Nm)

Installation

  1. To install, reverse the removal procedure.
