Ford Fiesta: Front Disc Brake / Brake Caliper Anchor Plate. Removal and Installation
Ford Fiesta 2014 - 2019 Service Manual / Brake System / Front Disc Brake / Brake Caliper Anchor Plate. Removal and Installation
Removal
-
Refer to: Brake and Clutch Systems Health and Safety Precautions (100-00 General Information, Description and Operation).
-
Remove the brake pads.
Refer to: Brake Pads (206-03 Front Disc Brake, Removal and Installation).
-

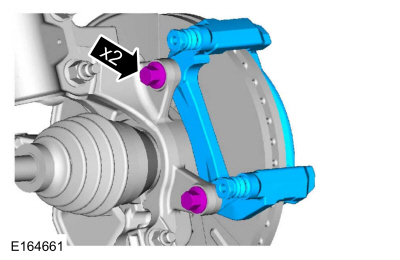

Remove the bolts and the brake caliper anchor plate.
Torque: 52 lb.ft (70 Nm)
 |
Installation
-
To install, reverse the removal procedure.
