Ford Fiesta: Engine Cooling - 1.6L EcoBoost (132kW/180PS) – Sigma / Thermostat. Removal and Installation

Special Tool(s) / General Equipment

Hose Clamp Remover/Installer

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Drain the cooling system.
    Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding (303-03B Engine Cooling - 1.6L EcoBoost (132kW/180PS) – Sigma, General Procedures).
  1. Remove the generator.
    Refer to: Generator - 1.6L EcoBoost (132kW/180PS) – Sigma (414-02 Generator and Regulator, Removal and Installation).

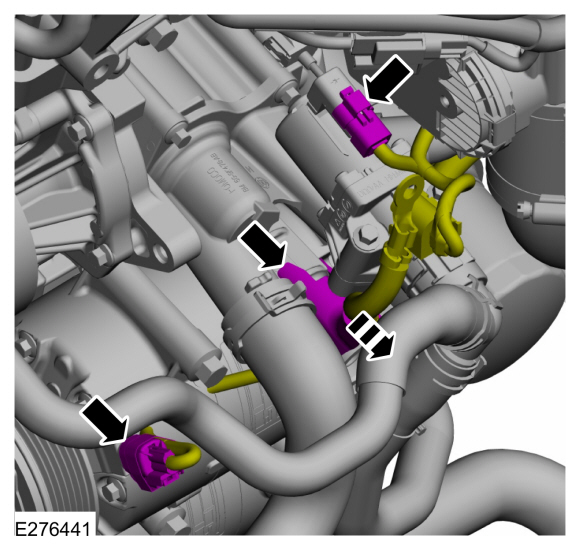

  1. Disconnect the electrical connectors, detach the harness retainer and position the wiring harness aside.

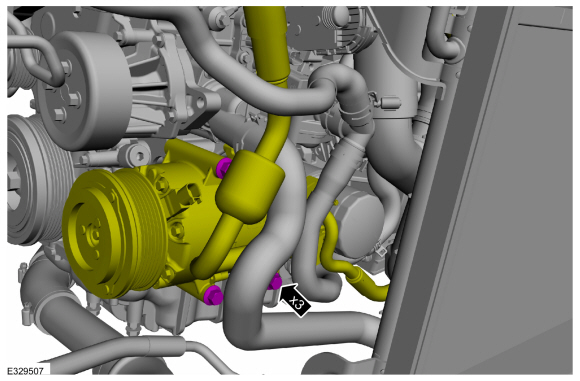

  1. Remove the bolts and position aside the A/C compressor.
    Torque: 18 lb.ft (24 Nm)

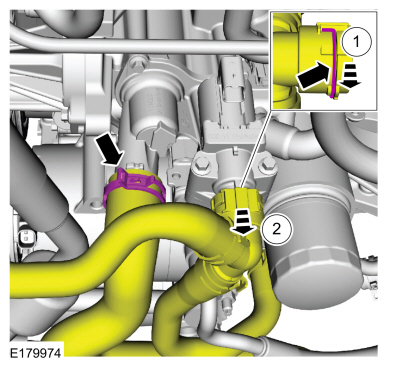

    1. Release the clip.
    1. Disconnect the coolant outlet hose.
    • Release the clamp and disconnect the radiator hose.

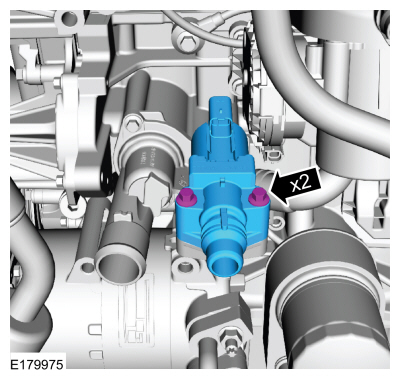

  1. Remove the bolts and the coolant shutoff solenoid valve.
    Torque: 89 lb.in (10 Nm)

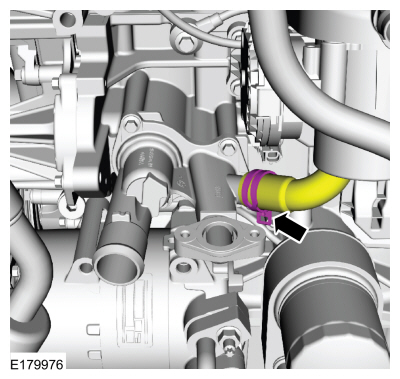

  1. Release the clamp and disconnect coolant bypass hose.
    Use the General Equipment: Hose Clamp Remover/Installer

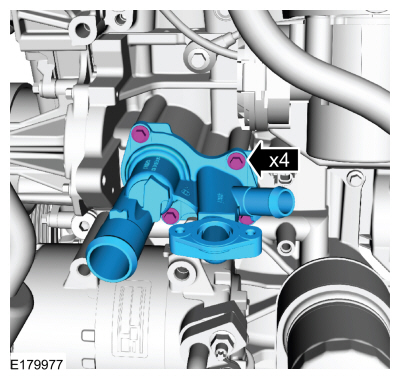

  1. Remove the bolts and the thermostat housing.
    Torque: 89 lb.in (10 Nm)

Installation

  1. To install, reverse the removal procedure.
