Ford Fiesta: Rear End Sheet Metal Repairs / Rear Wheelhouse Outer - 5-Door. Removal and Installation
Special Tool(s) /
General Equipment
Resistance Spotwelding Equipment |
Scraper for Straight Edges |
Air Body Saw |
MIG/MAG Welding Equipment |
Spot Weld Drill Bit |
Materials
Name |
Specification |
Seam Sealer TA-2-B, 3M™ 08308, LORD Fusor® 803DTM |
-
|
Flexible Foam Repair 3M™ 08463, LORD Fusor® 121 |
-
|
Removal
-
WARNING:
Before beginning any service procedure in this
manual, refer to health and safety warnings in section 100-00 General
Information. Failure to follow this instruction may result in serious
personal injury.
Follow the health and safety precautions.
Refer to: Body Repair Health and Safety and General Precautions (100-00 General Information, Description and Operation).
-
For vehicle dimensional information:
Refer to: Body and Frame (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation).
-
Remove the LH quarter panel.
Refer to: Quarter Panel LH - 5-Door (501-30 Rear End Sheet Metal Repairs, Removal and Installation).
-
Reposition the carpeting and the wiring harness away from the working area.
-

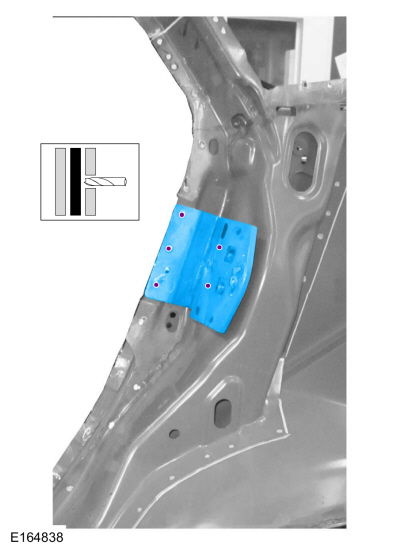

Drill out the spot welds and remove the reinforcement bracket.
Use the General Equipment: Spot Weld Drill Bit
-
NOTE:
Pay particular attention to location of NVH components to aid in installation.
Remove the NVH foam and baffle.
Use the General Equipment: Scraper for Straight Edges
-

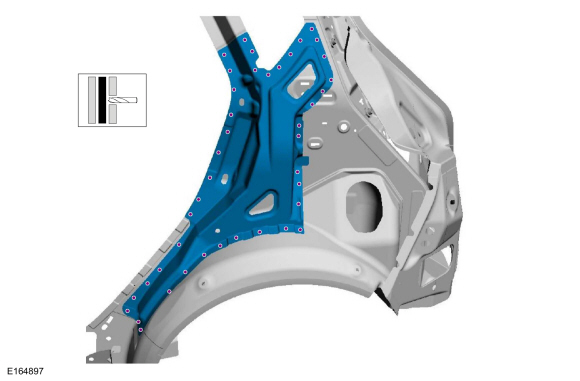

Remove the spot welds and the reinforcement side panel.
Use the General Equipment: Spot Weld Drill Bit
-

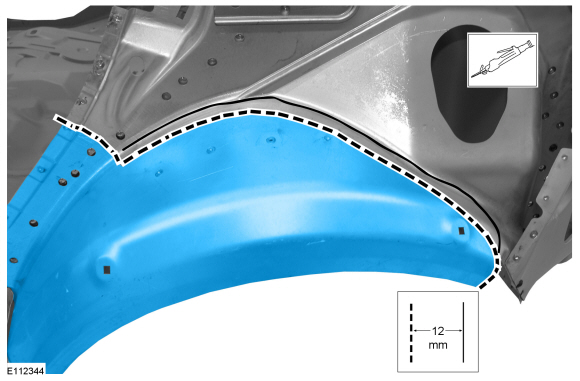

Carefully measure and cut the rear wheelhouse outer panel only and remove.
Use the General Equipment: Air Body Saw
Installation
-

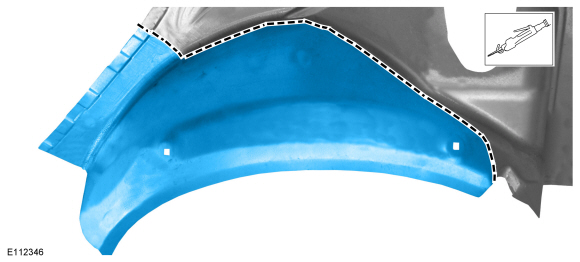

Cut the replacement section to fit repair area from the service replacement part.
Use the General Equipment: Air Body Saw
-

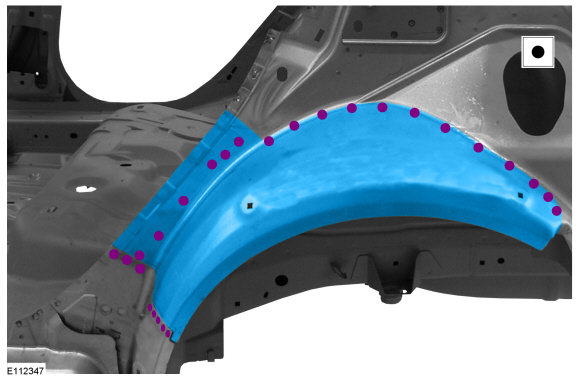

Install the rear wheelhouse outer panel and spot welds.
Use the General Equipment: Resistance Spotwelding Equipment
-

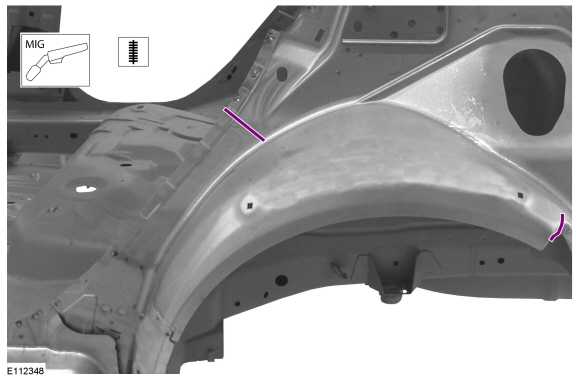

Seam weld at the corners of the rear wheelhouse panel.
Use the General Equipment: MIG/MAG Welding Equipment
-

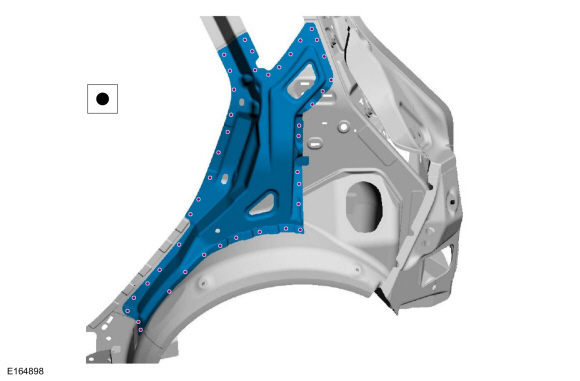

Install the reinforcement side panel and spot welds.
Use the General Equipment: Resistance Spotwelding Equipment
-

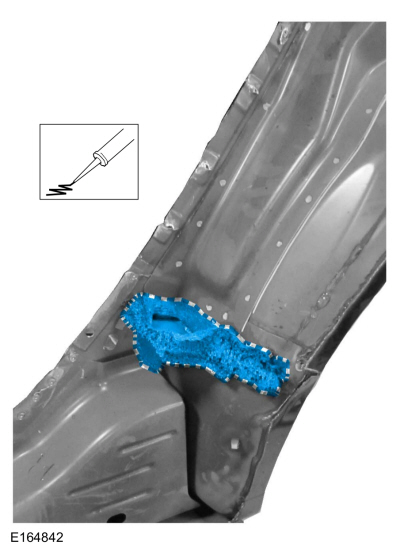

Apply NVH foam in location noted during removal.
Material: Flexible Foam Repair
/ 3M™ 08463, LORD Fusor® 121
-
Install the reinforcement bracket and welds.
Use the General Equipment: Resistance Spotwelding Equipment
Use the General Equipment: MIG/MAG Welding Equipment
-
Metal finish as required using typical metal finishing techniques.
-
Sealing work: All areas must be sealed to production
level including entire sectioning seam of the outer wheelhouse.
Material: Seam Sealer
/ TA-2-B, 3M™ 08308, LORD Fusor® 803DTM
-
Refinish using a Ford approved paint system.
-
Restore corrosion protection.
Refer to: Corrosion Prevention (501-25 Body Repairs - General Information, General Procedures).
-
Reposition the carpeting and the wiring harness.
-
Install the LH quarter panel.
Refer to: Quarter Panel LH - 5-Door (501-30 Rear End Sheet Metal Repairs, Removal and Installation).
