Ford Fiesta: Exterior Trim and Ornamentation / Luggage Compartment Lid Moulding - 5-Door. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Exterior Trim and Ornamentation / Luggage Compartment Lid Moulding - 5-Door. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the liftgate trim panel.
    Refer to: Liftgate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

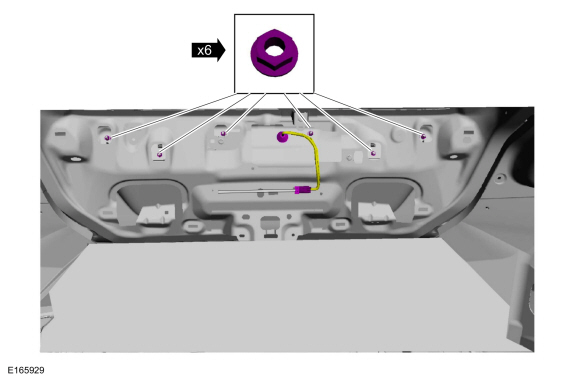

  1. Disconnect the electrical connector, position aside the wiring harness and remove the nuts.
    Torque: 35 lb.in (4 Nm)

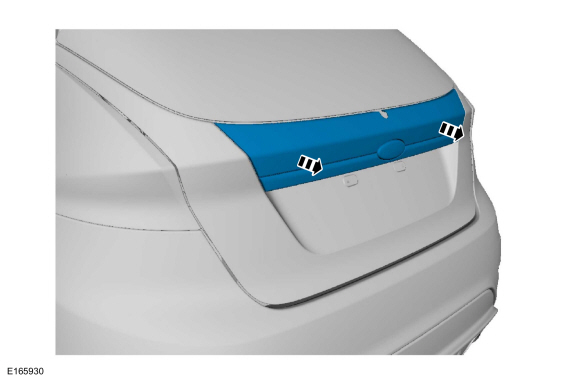

  1. Remove the luggage compartment lid moulding

Installation

  1. To install, reverse the removal procedure.
