Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the front bumper cover.
    Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation).
  1. Remove the front impact severity sensor.
    Refer to: Front Impact Severity Sensor (501-20B Supplemental Restraint System, Removal and Installation).
  1. Remove the headlamp assembly.
    Refer to: Headlamp Assembly (417-01 Exterior Lighting, Removal and Installation).

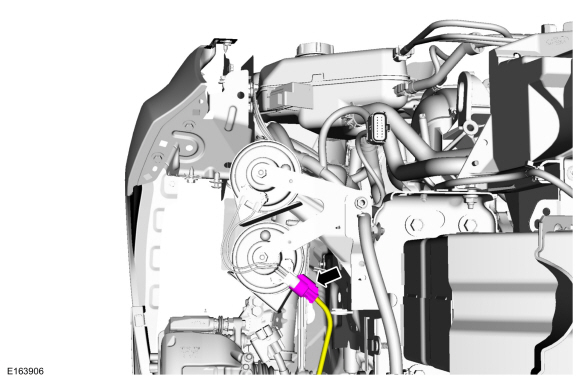

  1. Disconnect the horn electrical connector.

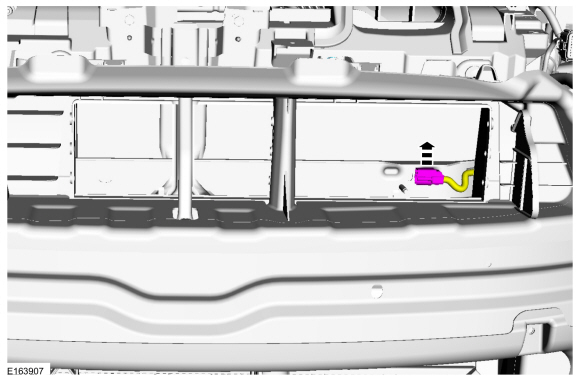

  1. Separate the front bumper cover wiring harness electrical connector from the upper air deflector.

  1. NOTE: On both sides

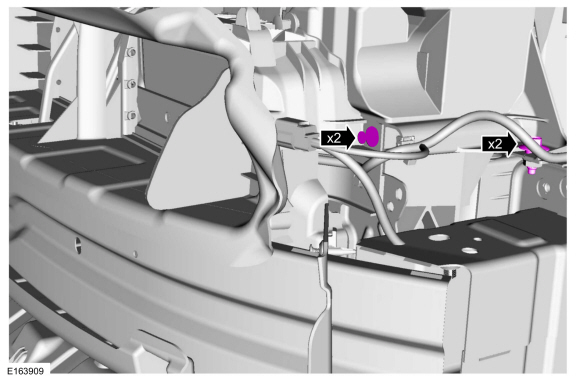

    Remove the upper air deflector pin-type retainers and the radiator grille opening panel reinforcement to front bumper bolts.
    Torque: 18 lb.ft (25 Nm)

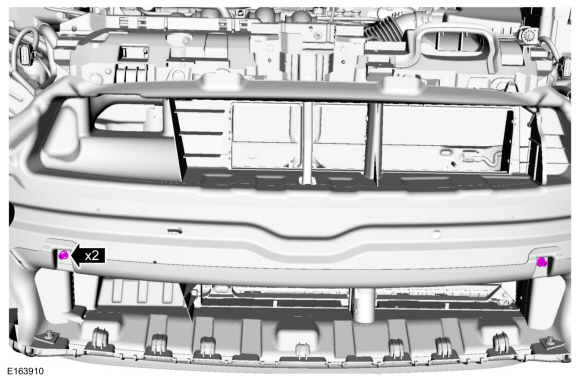

  1. Remove the lower air deflector pin-type retainers.

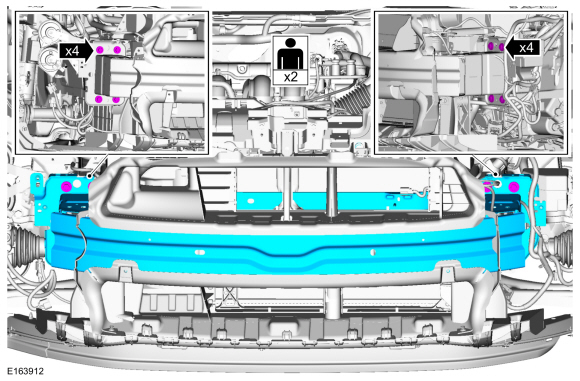

  1. Remove the bolts and the front bumper.
    Torque: 18 lb.ft (25 Nm)

Installation

  1. To install, reverse the removal procedure.
