Ford Fiesta: Engine Cooling - 1.6L EcoBoost (132kW/180PS) – Sigma / Degas Bottle. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Engine / Engine Cooling - 1.6L EcoBoost (132kW/180PS) – Sigma / Degas Bottle. Removal and Installation

Special Tool(s) / General Equipment

Fluid Suction Gun
Locking Pliers

Materials

Name Specification
Motorcraft® Orange Prediluted Antifreeze/Coolant
VC-3DIL-B		 WSS-M97B44-D2


Removal

NOTE: Removal steps in this procedure may contain installation details.

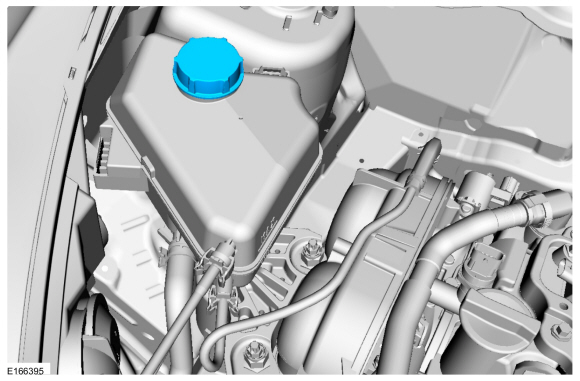

  1.   WARNING: When releasing the cooling system pressure, cover the coolant expansion tank cap with a thick cloth.

    Release the cooling system pressure by slowly turning the coolant expansion tank cap between 2 and 3 turns.

  1. NOTICE: Make sure that no strain is placed on the refrigerant lines.

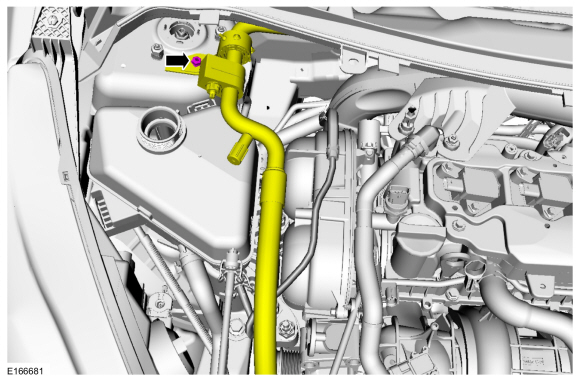

    Remove the nut and position the A/C compressor inlet line aside.
    Torque: 89 lb.in (10 Nm)

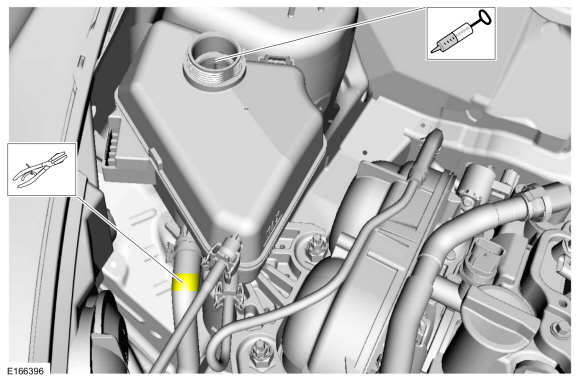

  1. Using general tools clamp the lower expansion tank hose and syphon the engine coolant from the expansion tank.
    Use the General Equipment: Fluid Suction Gun
    Use the General Equipment: Locking Pliers

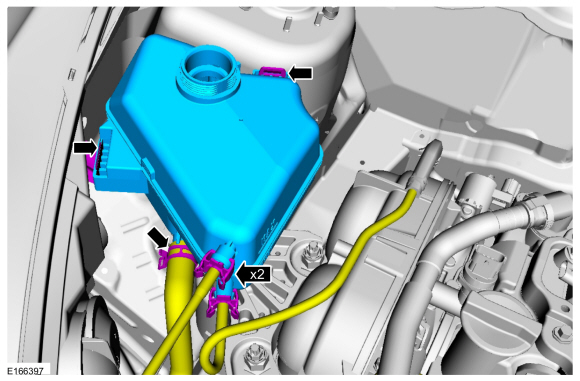

    • Depress the tabs and disconnect the upper coolant tubes.
    • Release the clamp and disconnect the lower coolant hose.
    • Release the tabs and remove the degas bottle.

Installation

  1. To install, reverse the removal procedure.
    Material: Motorcraft® Orange Prediluted Antifreeze/Coolant / VC-3DIL-B (WSS-M97B44-D2)
