Ford Fiesta: Interior Trim and Ornamentation / Steering Column Shrouds. Removal and Installation
Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Interior Trim and Ornamentation / Steering Column Shrouds. Removal and Installation
Removal
-

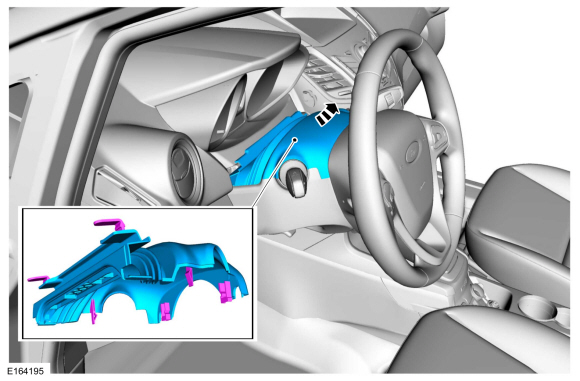

Release the tabs and remove the upper steering column shroud.
 |
-

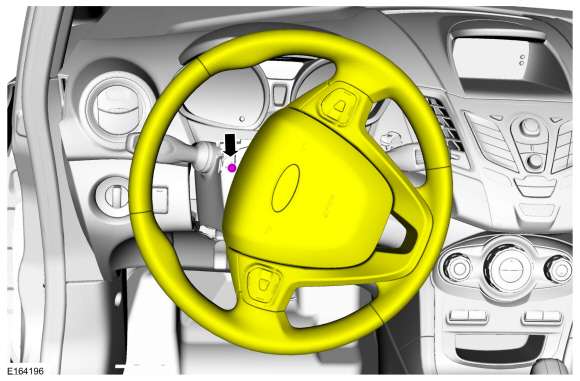

Rotate the steering wheel and remove the lower steering column shroud retainer.
 |
-
Remove the lower steering column shroud.
-

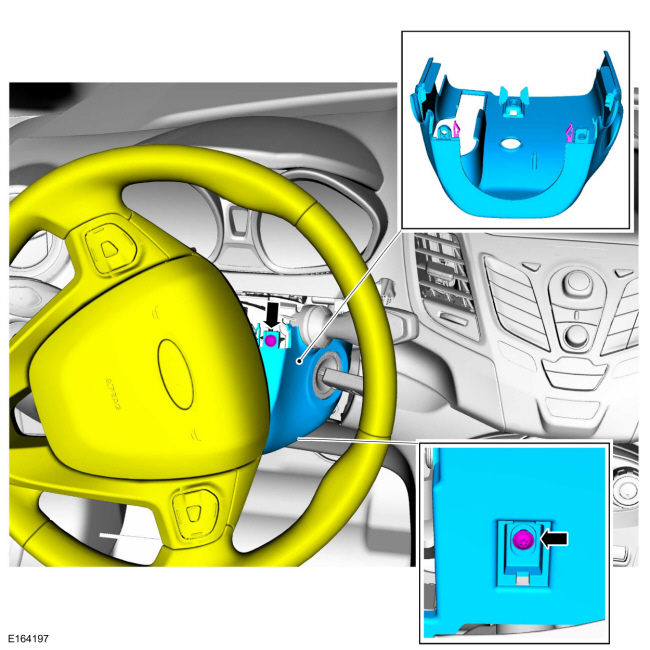

Rotate the steering wheel and remove the lower steering column shroud retainer.
-
Remove the lower retainer and the lower steering column shroud.
-
Rotate the steering wheel and remove the lower steering column shroud retainer.
 |
Installation
-
To install, reverse the removal procedure.
