Ford Fiesta: Wipers and Washers / Rear Window Wiper Motor. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Wipers and Washers / Rear Window Wiper Motor. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

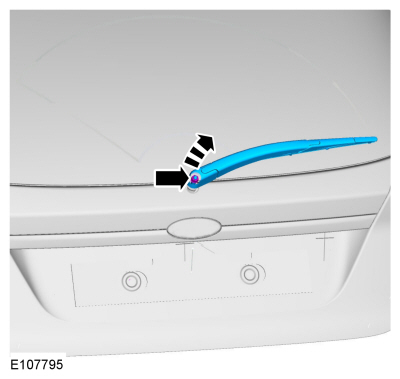

Remove the nut and the rear wiper pivot arm.
Torque: 133 lb.in (15 Nm)

Remove the liftgate trim panel.
Refer to: Liftgate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

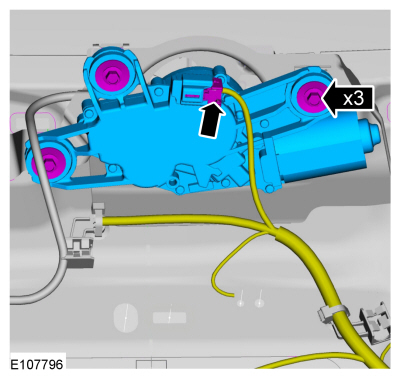

Remove the rear window wiper motor.
- Disconnect the wiper motor electrical connector.
- Remove the bolts and the rear window wiper motor.
  Torque: 80 lb.in (9 Nm)

Installation

To install, reverse the removal procedure.
