Ford Fiesta: Exterior Trim and Ornamentation / Rear Spoiler - 5-Door. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Exterior Trim and Ornamentation / Rear Spoiler - 5-Door. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the high mounted stoplamp.
    Refer to: High Mounted Stoplamp (417-01 Exterior Lighting, Removal and Installation).

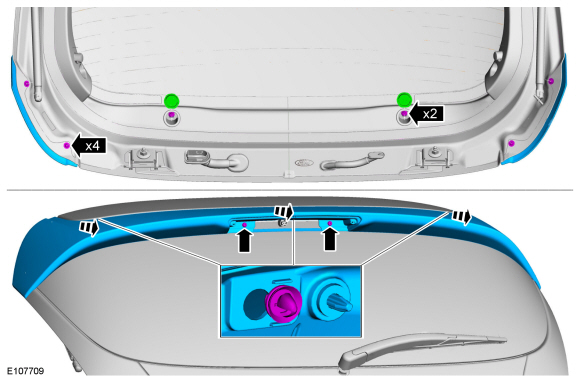

  1. Remove the rear spoiler.
    • Remove the covers and the bolts.
    • Remove the nuts, release the clips and remove the rear spoiler.
      Torque: 71 lb.in (8 Nm)

Installation

  1. To install, reverse the removal procedure.
