Ford Fiesta: Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC / Information and Entertainment System - Component Location. Description and Operation
Ford Fiesta 2014 - 2019 Service Manual / Information and Entertainment Systems / Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC / Information and Entertainment System - Component Location. Description and Operation

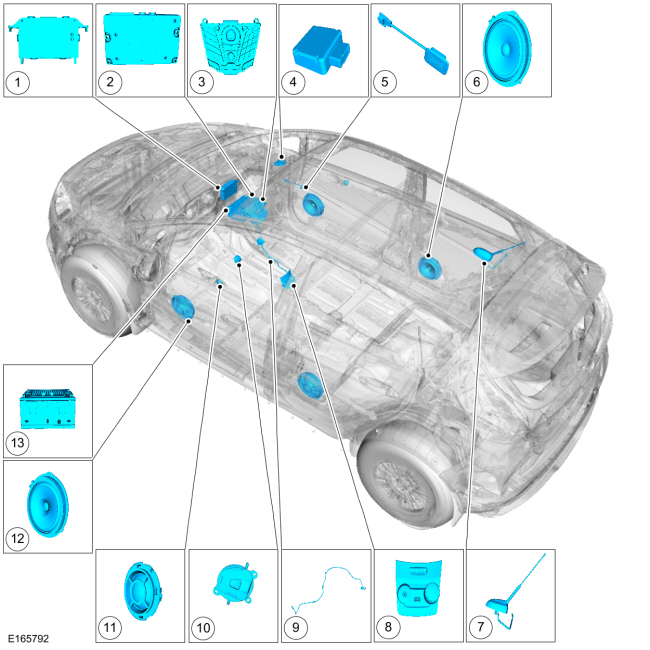

| Item | Description |
|---|---|
| 1 | FCDIM (non-touchscreen display) |
| 2 | APIM |
| 3 | FCIM |
| 4 | GPSM |
| 5 | Microphone (located in the headliner) |
| 6 | Rear door full-range speakers |
| 7 | Audio unit antenna |
| 8 | Audio input jack (if equipped) and USB port |
| 9 | USB cable |
| 10 | Audio/SYNC steering wheel switches |
| 11 | Front door tweeter speakers |
| 12 | Front door midwoofer speakers |
| 13 | ACM |
Information and Entertainment System - Overview. Description and Operation
Overview
The audio system consists of the following:
Main Components:
FCDIM (non-touchscreen display)
6 speakers
ACM
Audio input jack (if equipped)
APIM
FCIM
GPSM
Audio/SYNC steering wheel switches
USB port/cable
Main Features:
Audio extended play
Compass
..
Other information:
